SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram

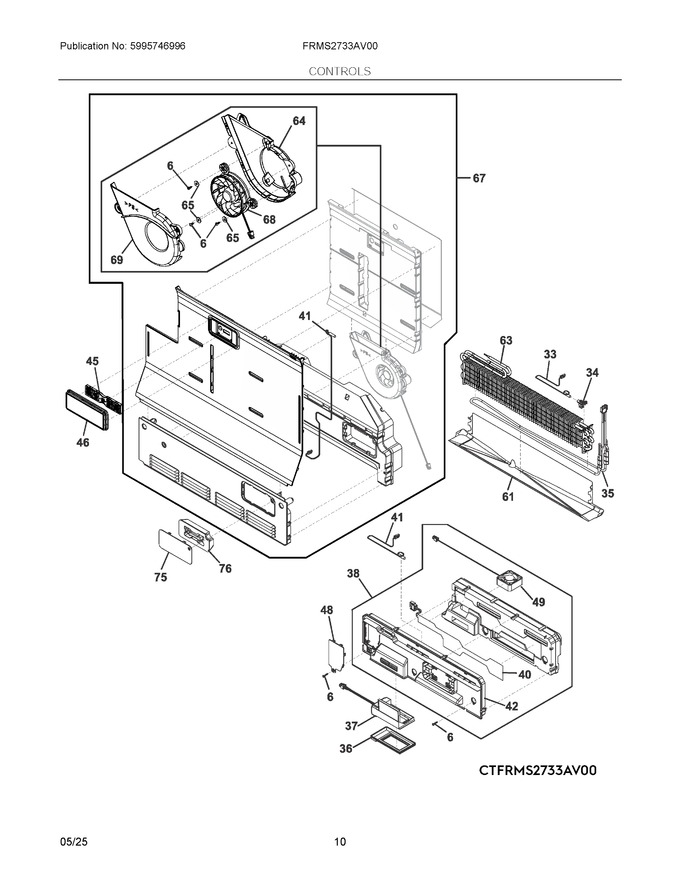

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811949503		Screw, Truss, 4.2 X 13				$ 3.03
33	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 36.75
34	811980406		Clamp, Ntc, Evaporator   (Replaces: 5304534879)				$ 4.19
35	140159197049		Heater Defrost, Evaporator				$ 103.24
36	5304523686		Seal, Baffle Assembly				$ 32.96
37	5304519166		Baffle Assembly, Air Damper, Middle Drawer			Immediately	$ 129.08
38	5304519167		Cover Assembly, Air Flow, Middle Drawer, W/fan-heater				$ 93.40
40	5304523056		Heater Assembly, Middle Drawer				$ 88.93
41	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
42	5304519170		Cover, Air Duct, Middle Drawer		Appelez-nous	-
45	FRGPAAF1		Air Filter, Assembly   (Replaces: 5304530334)			Immediately	$ 29.77
46	5304536926		Cover, Air Filter				$ 17.61
48	5304519172		Cover, Window, Middle Drawer				$ 11.17
49	5304519173		Fan Assembly, Middle Drawer, W/sleeve			Immediately	$ 137.93
61	5304519180		Drain Trough, Evaporator, Fresh Food		Appelez-nous	-
63	5304526811		Evaporator, Assembly, Fresh Food			Immediately	$ 168.00
64	5304526813		Plate, Fan Mounting, Fresh Food		Appelez-nous	-
65	5304519183		Washer, Flat		Appelez-nous	-
67	5304536609		Cover Assembly, Air Duct, Fresh Food, Complete				$ 151.33
68	5304536608		Motor, Fan, Frz Evaporator				$ 111.33
69	5304526812		Housing, Fan, Fresh Food		Appelez-nous	-
75	5304519189		Cover, Window, Fresh Food		Appelez-nous	-
76	5304522062		Insulation, Window, Eps, Fresh Food		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
