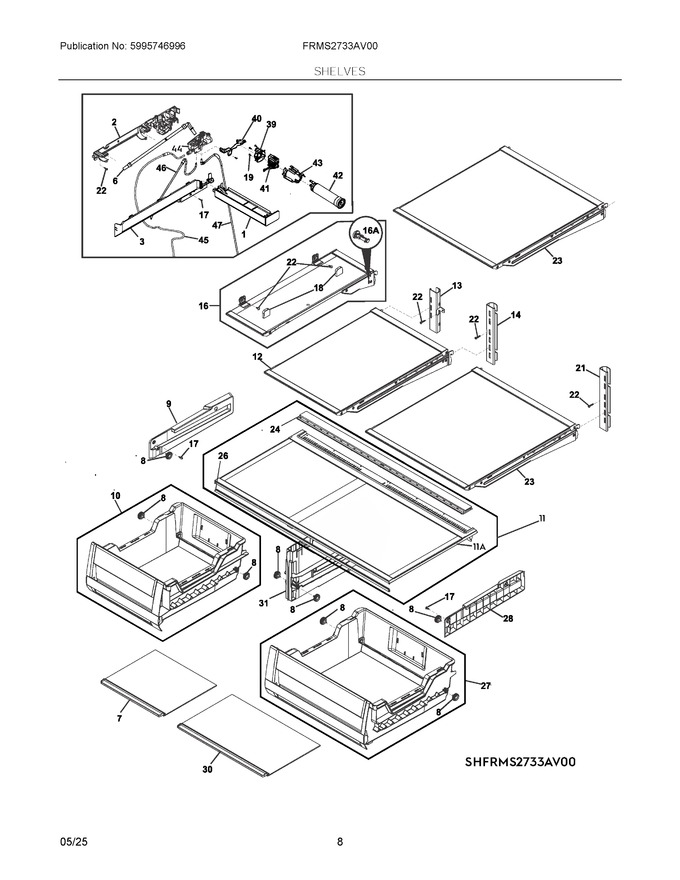

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304538925		Cover, Filter, Facia				$ 28.03
2	5304529543		Support, Water Valve, & Tank		Appelez-nous	-
3	5304529550		Cover, Water Tank		Appelez-nous	-
6	5304538954		Tube, To Bypass, Water Tank				$ 10.67
7	5304534909		Cover, Mullion Storage, Glass, Lh		Appelez-nous	-
8	5304519124		Roller, Crisper Glide				$ 16.84
9	5304534868		Rail, Crisper, Lh Side		Appelez-nous	-
10	5304538948		Drawer Assembly, Crisper, Lh, W/rollers		Appelez-nous	-
11	5304534906		Cover Assembly, Crisper, W/glass		Appelez-nous	-
12	5304538945		Shelf Assembly, Cantilever, Glass, Lh		Appelez-nous	-
13	5304536604		Bracket, Cantilever Shelf, Lh		Appelez-nous	-
14	5304536605		Bracket, Cantilever Shelf, Center		Appelez-nous	-
16	5304538944		Shelf Assembly, Flip Up Shelf, Glass		Appelez-nous	-
17	5304534870		Screw, Phil Pan Hilo, .63 In		Appelez-nous	-
18	5304519133		Cover, Screw, Small				$ 8.19
19	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
21	5304536606		Bracket, Cantilever Shelf, Rh		Appelez-nous	-
22	811949503		Screw, Truss, 4.2 X 13				$ 3.03
23	5304538946		Shelf Assembly, Cantilever, Glass, Rh		Appelez-nous	-
24	5304536619		Housing Assembly, Auto Membrane, W/membrane		Appelez-nous	-
26	5304534907		Gasket, Cover, Crisper		Appelez-nous	-
27	5304538947		Drawer Assembly, Crisper, Rh, W/rollers		Appelez-nous	-
28	5304534869		Rail, Crisper, Rh Side		Appelez-nous	-
30	5304534908		Cover, Mullion Storage, Rh		Appelez-nous	-
31	5304534905		Divider, Crisper Cover		Appelez-nous	-
39	5304536610		Cover, Manifold, Rear				$ 2.93
40	5304529545		Guide, Water Tube			Immediately	$ 18.25
41	140156010054		Manifold, Water Filter   (Replaces: 5304524817)				$ 30.57
42	FPPWFU01		Filter, Water, Wf-1, Frig Purepour			Immediately	$ 80.38
43	5304529547		Cover, Manifold, Front				$ 65.25
44	5304529602		Water Valve, Assembly, Double				$ 150.26
45	5304534916		Tube, Side Dispenser, Door				$ 34.23
46	5304523685		Tubing, Valve, To Fz Ice Maker				$ 55.51
47	5304529549		Tube, Water, Brown			Immediately	$ 23.06
11A	5304538949		Cover, Crisper, W/glass		Appelez-nous	-
16A	5304523682		Pin, Interlock, Flip Up Shelf		Appelez-nous	-
NIA	5304519098		Screw, Trilob, M4 X 12				$ 3.03
