SELECT A DIAGRAM

01 - Cover

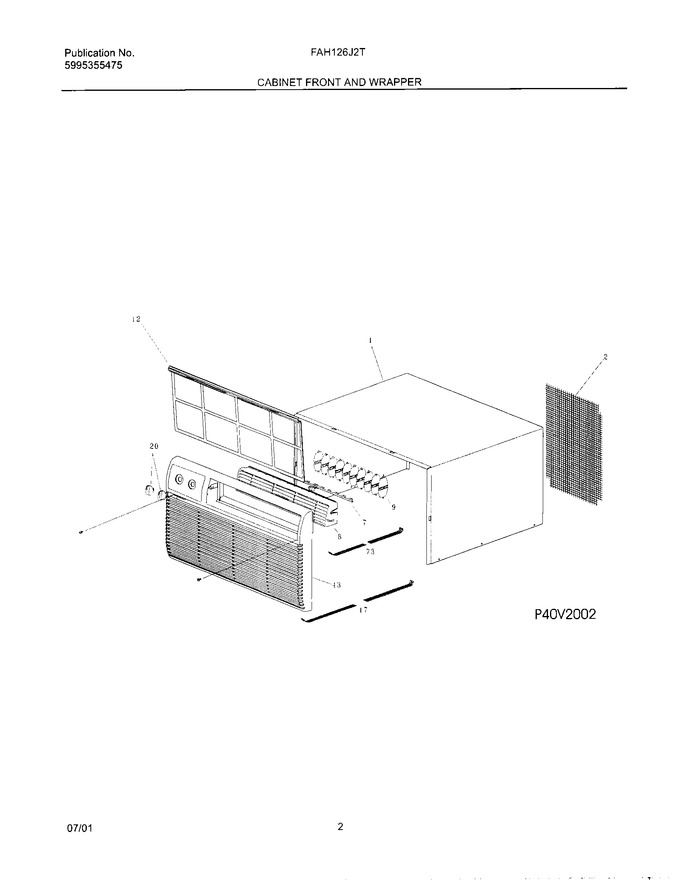

03 - Cabinet Front & Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309627504		Cabinet-,u-bend 18.5bld		Appelez-nous	-
2	309636101		Screen-safety 18.5bld		Appelez-nous	-
7	309324004		Link-handle		Appelez-nous	-
8	309628004		Louver,horizontal		Appelez-nous	-
9	309628104		Louver-vertical				$ 4.41
12	309628204		Filter,air ,molded Plastic ,grey				$ 47.09
17	309629405		Front Assy,18.5 Bld Cool		Appelez-nous	-
20	309307013		Knob-control		Appelez-nous	-
43	309631805		Front Assy,control/label				$ 111.72
73	309629304		Louver Assy,grey				$ 104.21
NI	5304408740		Panel-rear Plastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
