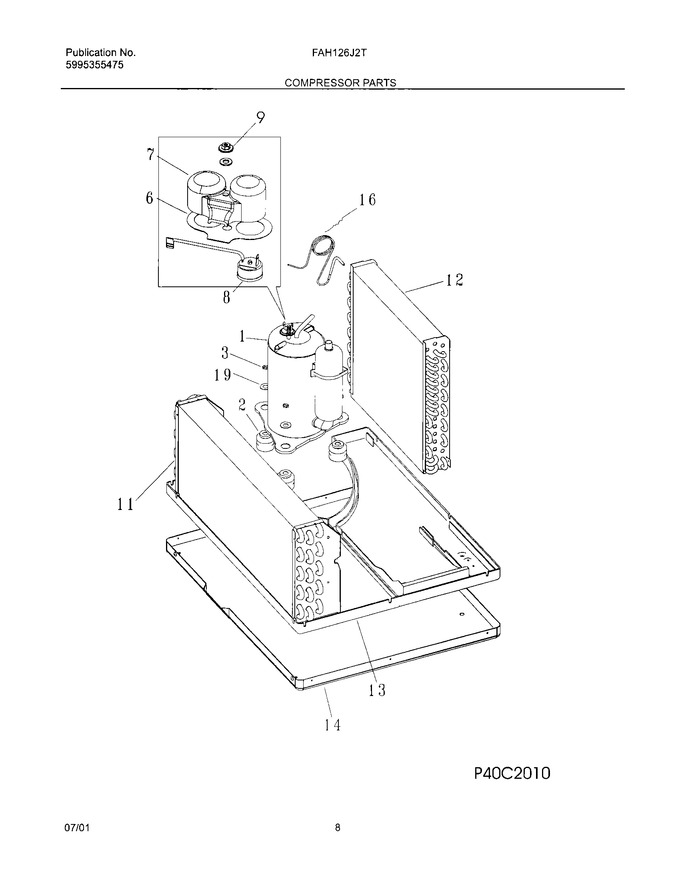

09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303291330		Gasket,terminal Cover		Appelez-nous	-
7	5304416126		Cover-terminal,compressor		Appelez-nous	-
9	5303294292		Nut-terminal Cover		Appelez-nous	-
13	309628705		Tray-base		Appelez-nous	-
14	309632003		Base/stud Assy		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
F1	309603109		Compressor		Appelez-nous	-
F11	309632403		Evaporator		Appelez-nous	-
F12	309632507		Condenser		Appelez-nous	-
F16	3203179		Capillary Tube,55 Inch Long ,cut-to-length		Appelez-nous	-
F8	5304420992		Overload Protector,mra 12070-386		Appelez-nous	-
NI	5303293809		Washer		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-
