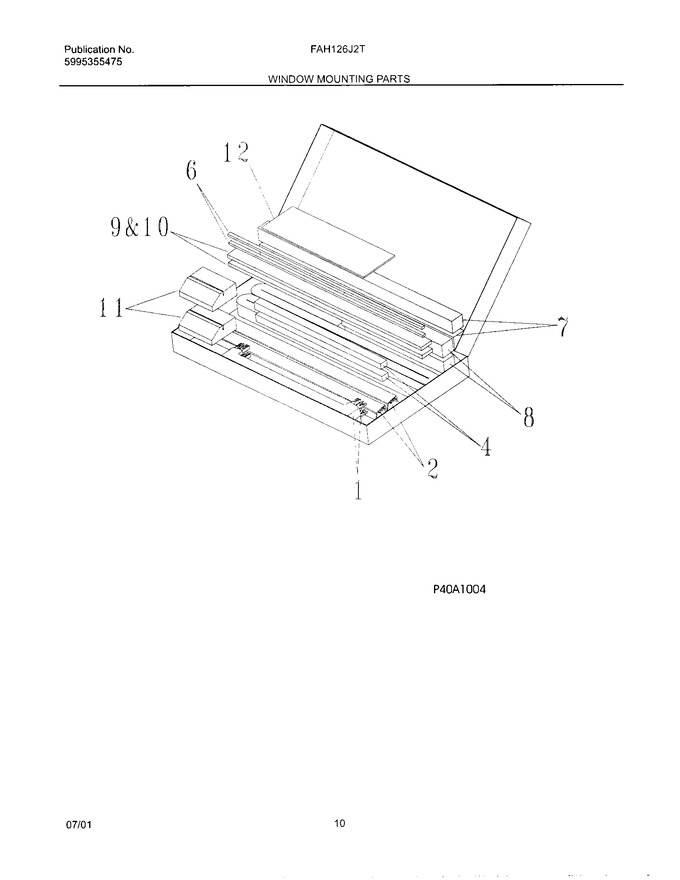

11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309628603		Trim		Appelez-nous	-
2	309628604		Trim Frame-top & Sides (2)				$ 15.07
3	5304409303		Kit-wire Grounding		Appelez-nous	-
4	5304409304		Block,tapered		Appelez-nous	-
5	5303301038		Seal-wrapper		Appelez-nous	-
6	5304409305		Seal-bracket End,cond		Appelez-nous	-
7	5304409306		Seal-rear Panel,condenser		Appelez-nous	-
8	5304409307		Seal-rear Pnl/sides,condenser		Appelez-nous	-
9	5304409308		Seal-rear Pnl Top/botm,cond		Appelez-nous	-
10	5304409309		Seal-rear Pnl/sides,cond		Appelez-nous	-
11	5304409310		Block-cabinet/chassis		Appelez-nous	-
12	309335101		Divider,cond In/out		Appelez-nous	-
13	5304409311		Kit-grille Mtg		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	309636002		Kit-mtg Complete		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
