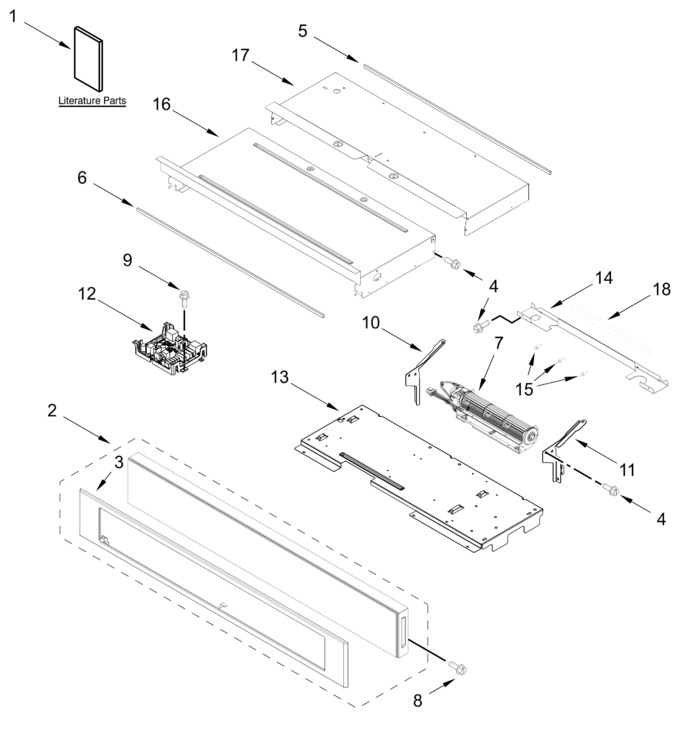

Control Panel Parts
Internal Oven Parts
Lower Oven Door Parts
Optional Parts (not Included)
Oven Parts
Upper Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11795193 | Control Panel Assembly (stainless) (Replaces: W11765382) |
|
- | |||||
| 3 | W11726569 | Skin, Control Panel (stainless) (Replaces: W11689165) |
|
- | |||||
| 4 | 7101P42660 | Screw |
|
- | |||||
| 5 | W10728475 | Gasket, Rubber |
|
$ 32.68 | |||||
| 6 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 7 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 332.78 | ||||
| 8 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 12.62 | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12 | W11448962 | Appliance Manager (Replaces: W11249218) |
|
Immediately | $ 292.92 | ||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 18.96 | |||||
| 16 | W11789693 | Cover, 30 In Chassis Top (front) (Replaces: W11767801) |
|
- | |||||
| 17 | W11223325 | Cover, 30 In Chassis Top (back) |
|
$ 73.52 | |||||
| 18 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 52.97 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | ||||||
| W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 20.12 | ||||||
| W11479717 | Wiring Diagram |
|
- | ||||||
| W11340883 | Tech Manual |
|
- | ||||||
| W11598200 | Appliance Manager (without Power Supply) (Replaces: W11249217) |
|
Immediately | $ 313.61 | |||||
| W11245674 | Harness, Main |
|
Immediately | $ 344.09 | |||||
| W11233570 | Harness, Console |
|
Immediately | $ 201.14 | |||||
| W11760865 | Owners Manual |
|
- | ||||||
| W11781381 | Harness, Signal (Replaces: W11722851) |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 11.55 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 18.35 | ||||||
| W10655464 | Bracket, Harness |
|
$ 34.89 | ||||||
| W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 28.24 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11618058 | Quick Start Guide |
|
- |
