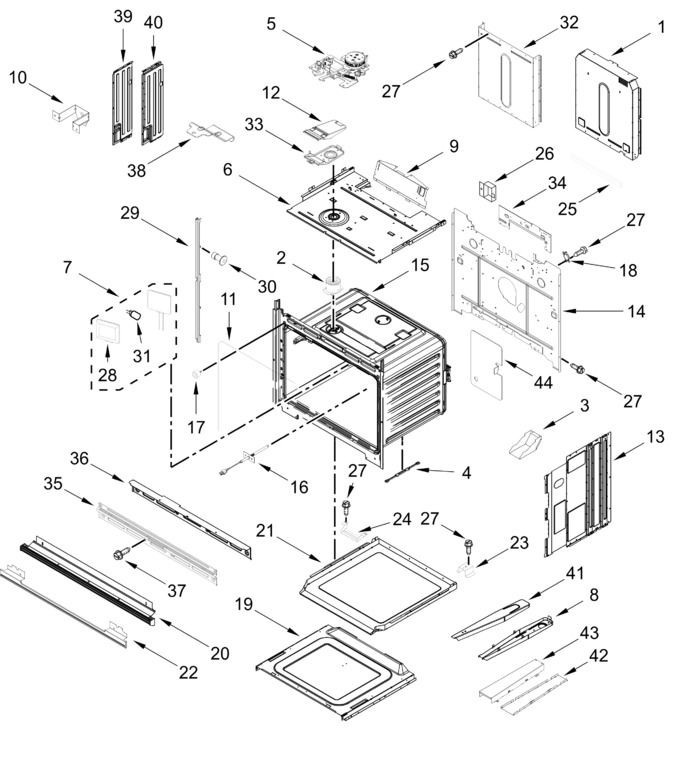

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11165250		Duct, Upper Chassis Back				$ 65.42
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 21.89
3	W11256432		Deflector, Lower Back Exhaust		Appelez-nous	-
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 15.55
5	W11811612		Latch, Motorized   (Replaces: W11655005)			Immediately	$ 59.88
6	W11168071		Top, Chassis		Appelez-nous	-
7	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 92.12
8	W11256420		Base, Top Back Exhaust		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 145.53
10	W11344645		Hat Bracket, Vent		Appelez-nous	-
11	W11692454		Gasket   (Replaces: W11608108)				$ 125.93
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 69.42
14	W11223327		Back, Chassis		Appelez-nous	-
15	ARIF1DCB018B2324CAD9D04009CD738647B		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11758691		Probe, Sensor   (Replaces: W11685697)				$ 29.03
17	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 20.03
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 65.03
20	W11648980		Bottom Vent Assembly (stainless)   (Replaces: W11467754)			Immediately	$ 166.85
21	W11244446		Duct, Bottom Chassis				$ 60.21
22	W11714646		Trim, Bottom Vent (black)   (Replaces: W11624689)				$ 77.43
23	W11135135		Support, Air Channel				$ 30.99
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 33.30
25	W11211345		Foam, U-bracket		Appelez-nous	-
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
29	W11235460		Cover, Side Trim (left)				$ 97.88
30	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
32	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	W11186652		Bracket, U-shape		Appelez-nous	-
35	W11235482		Vent, 30 In Center (black)				$ 91.67
36	W11715951		Vent, 30 In Top   (Replaces: W11334857)				$ 88.63
37	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.47
38	W11342780		Bracket, Top Front		Appelez-nous	-
39	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 63.48
40	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 63.48
41	W11256421		Cover, Top Back Exhaust		Appelez-nous	-
42	W11256430		Base, Lower Back Exhaust		Appelez-nous	-
43	W11256431		Cover, Lower Back Exhaust		Appelez-nous	-
44	W11533682		Cover, Wifi		Appelez-nous	-
	W11235461		Cover, Side Trim (right)				$ 97.88
	W11602627		Insulation, Cavity   (Replaces: W11234758)				$ 70.72
	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
