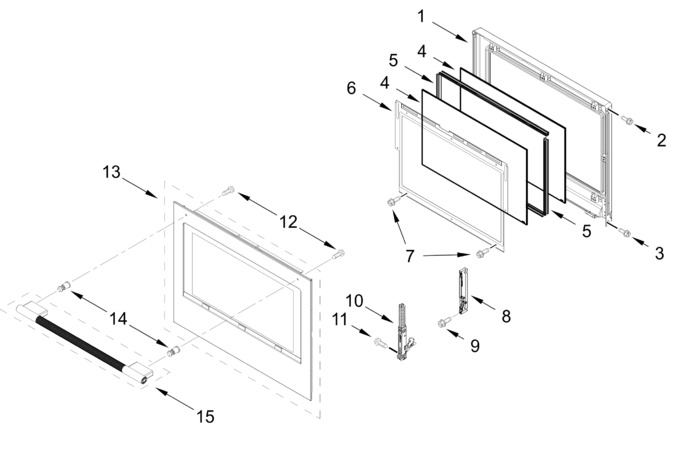

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11699126) |
|
Immediately | $ 260.41 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 12.66 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 212.32 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11647160) |
|
Immediately | $ 61.79 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 69.89 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11752201 | Receiver, Hinge (Replaces: W11100732) |
|
$ 39.91 | |||||
| 9 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 7.30 | |||||
| 10 | W11781372 | Hinge, Door (left) (Replaces: W11755837) |
|
Immediately | $ 117.29 | ||||
| 11 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 6.98 | ||||
| 12 | W11749091 | Screw (black) (Replaces: W11707001) |
|
$ 10.58 | |||||
| 13 | W11795851 | Door Assembly (stainless) (Replaces: W11685414) |
|
- | |||||
| 14 | W11773159 | Stud (Replaces: W11687274) |
|
$ 25.60 | |||||
| 15 | W11773160 | Handle (stainless) (Replaces: W11680261) |
|
$ 110.14 | |||||
| W11781373 | Hinge, Door (right) (Replaces: W11755838) |
|
$ 108.71 |
