| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

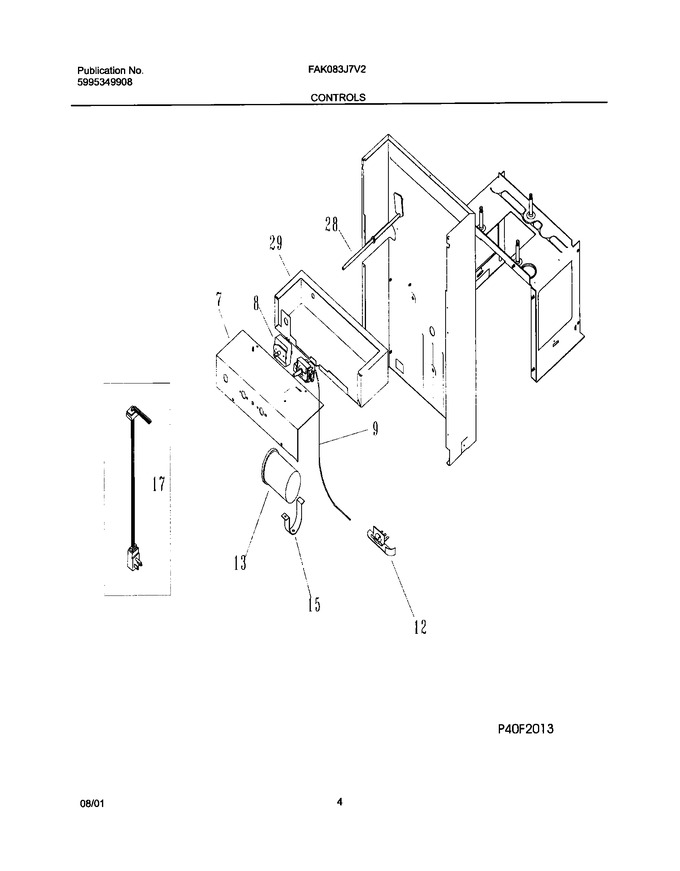

| 7 | 309606501 | Panel-mounting,controls |
|
- | |||||
| 12 | 309321201 | Clip-control Bulb |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 28 | 309625301 | Door-ventilator,assembly |
|
- | |||||
| 29 | 309606402 | Control Box |
|
- | |||||
| F13 | 5303303125 | Capacitor,370 V ,35+5 Microfarad |
|
- | |||||
| F17 | 309343105 | Cord-service |
|
- | |||||
| F8 | 5303323284 | Switch-selector |
|
- | |||||
| F9 | 5304409252 | Control Temperature |
|
$ 182.12 |
