01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts

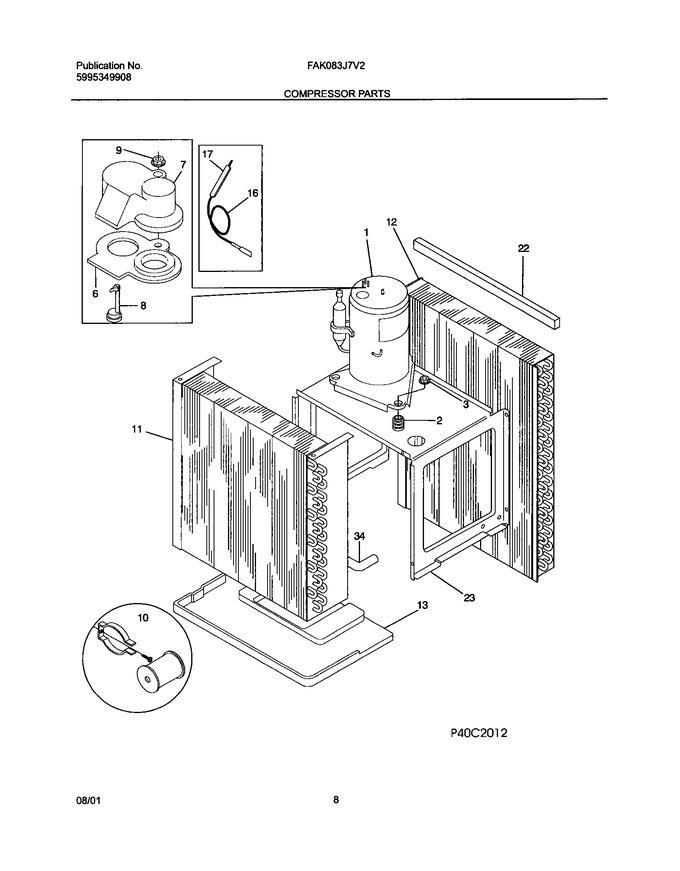

09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304406829 | Compressor,san 806-551-42 |
|
$ 620.31 | |||||
| 2 | 5303015945 | Grommet Compressor (3) |
|
- | |||||
| 3 | 5303015946 | Nut,plastic ,compressor ,(3) |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3200281 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 13 | 309624101 | Tray-evaporator |
|
- | |||||
| 22 | 5303313964 | Seal,condenser ,upper |
|
- | |||||
| 23 | 309614105 | Base,compressor |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309617003 | Evaporator |
|
- | |||||
| F12 | 309617203 | Condenser |
|
- | |||||
| F16 | 5303303064 | Capillary Tube,30 Inch Long |
|
- | |||||
| F8 | 3202920 | Overload Protector |
|
- |
