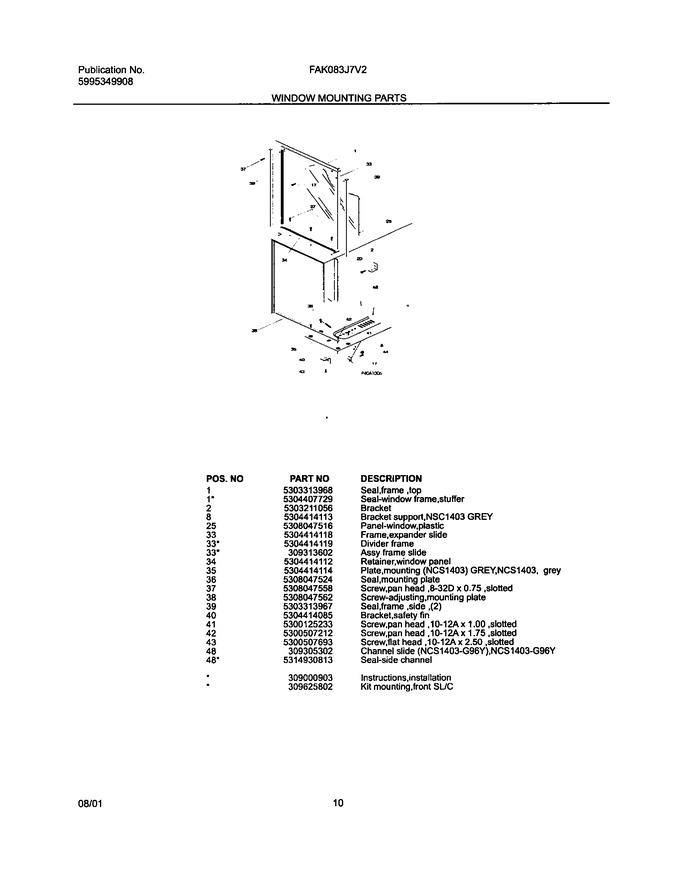

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303313968		Seal,frame ,top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
8	5304414113		Bracket Support,nsc1403 Grey		Appelez-nous	-
25	5308047516		Panel-window,plastic		Appelez-nous	-
33	5304414118		Frame,expander Slide		Appelez-nous	-
34	5304414112		Retainer,window Panel		Appelez-nous	-
35	5304414114		Plate,mounting (ncs1403) Grey,ncs1403 ,grey		Appelez-nous	-
36	5308047524		Seal,mounting Plate		Appelez-nous	-
37	5308047558		Screw,pan Head `8-32d X 0.75 ,slotted		Appelez-nous	-
38	5308047562		Screw-adjusting,mounting Plate		Appelez-nous	-
39	5303313967		Seal,frame ,side ,(2)		Appelez-nous	-
40	5304414085		Bracket,safety Fin		Appelez-nous	-
41	5300125233		Screw,pan Head `10-12a X 1.00 `slotted		Appelez-nous	-
42	5300507212		Screw,pan Head `10-12a X 1.75 ,slotted		Appelez-nous	-
43	5300507693		Screw,flat Head `10-12a X 2.50 `slotted		Appelez-nous	-
48	309305302		Channel Slide (ncs1403-g96y),ncs1403-g96y				$ 45.68
NI	309625802		Kit Mounting,front Sl/c		Appelez-nous	-
NI	5304414119		Divider Frame		Appelez-nous	-
NI	5304407729		Seal-window Frame,stuffer		Appelez-nous	-
NI	5314930813		Seal-side Channel		Appelez-nous	-
NI	309000903		Instructions,installation		Appelez-nous	-
NI	309313602		Assy Frame Slide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
