SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:

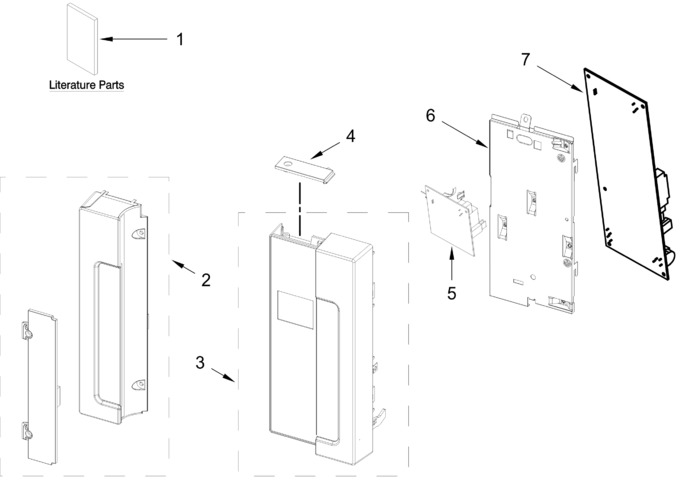

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11219784 | Control Panel, Left (white) |
|
$ 317.39 | |||||
| 3 | W11206154 | Control Panel, Right (white) |
|
$ 131.96 | |||||
| 4 | W11109987 | Cover, Top (white) |
|
$ 54.99 | |||||
| 5 | W11443148 | User Interface (Replaces: W11389852) |
|
Immediately | $ 117.29 | ||||
| 6 | W11083284 | Backer, Control |
|
Immediately | $ 70.37 | ||||
| 7 | W11781937 | Appliance Control Unit (Replaces: W11760639) |
|
- | |||||
| W11359126 | Installation Instructions |
|
- | ||||||
| W11398325 | Tech Sheet |
|
- | ||||||
| W11396506 | Use And Care Guide |
|
- |
