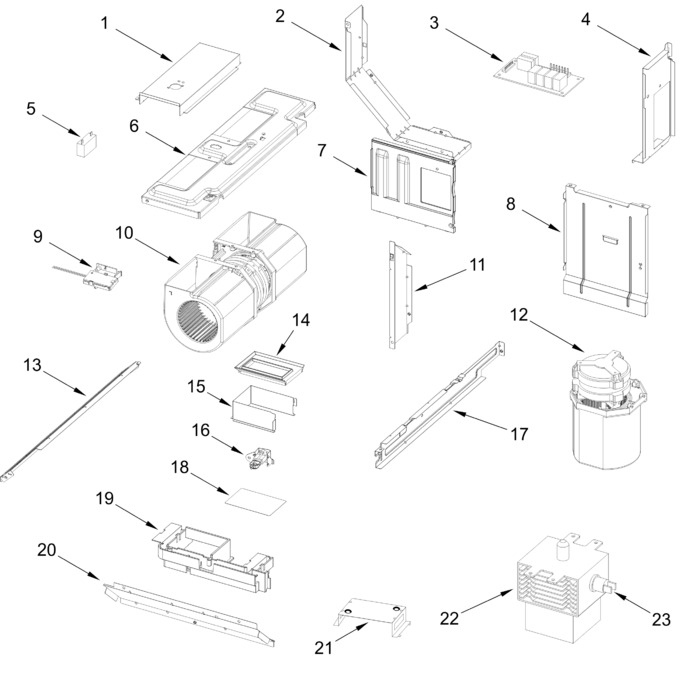

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11108230		Outlet, Cavity (back)		Appelez-nous	-
2	W11095827		Air Deflector, Right		Appelez-nous	-
3	W11443149		Hood Control   (Replaces: W11391783)			Immediately	$ 55.87
4	W11095824		Outlet Deflector, Right				$ 67.51
5	W11405832		Capacitor, Hood Motor				$ 24.52
6	W11086272		Chassis, Fan		Appelez-nous	-
7	W11095794		Deflector, Cooling Fan		Appelez-nous	-
8	W11095804		Hood Deflector, Right		Appelez-nous	-
9	W11098921		Base, Cavity Lighting				$ 67.23
10	W11712433		Motor, Hood (300 Cfm)   (Replaces: W11409092)			Immediately	$ 179.28
11	W11096432		Hood Deflector, Back		Appelez-nous	-
12	W11213353		Hood Motor, Single   (Replaces: W11039275)			Immediately	$ 182.33
13	W11095830		Air Guide, Left		Appelez-nous	-
14	W11405836		Seal, Lighting				$ 18.49
15	W11086300		Housing, Cavity Lighting		Appelez-nous	-
16	W11409090		Lamp, Halogen				$ 8.57
17	W11095814		Divider, Air		Appelez-nous	-
18	W11186948		Foil, Lamp				$ 67.55
19	W11099491		Holder, Wire		Appelez-nous	-
20	W11095828		Channel, Hood Back		Appelez-nous	-
21	W11518459		Shield Plate, Wave Guide   (Replaces: W11460406)				$ 25.30
22	W11783300		Magnetron   (Replaces: W11755312)			Immediately	$ 244.65
23	W11443128		Thermostat, Magnetron   (Replaces: W11378280)				$ 16.80
