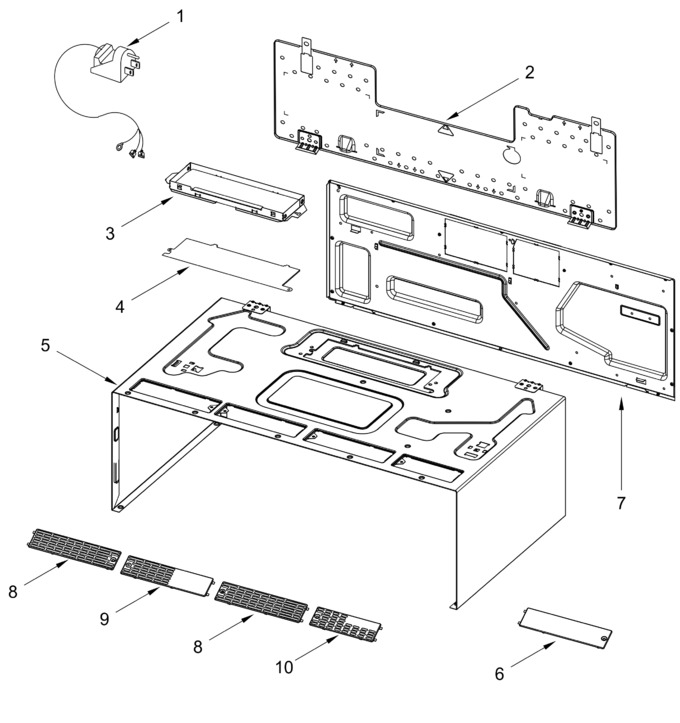

Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11187358 | Cord, Power |
|
- | |||||
| 2 | W11368557 | Plate, Mounting (Replaces: W11086258) |
|
Immediately | $ 40.22 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11165209 | Cover, Exhaust (white) |
|
$ 71.94 | |||||
| 5 | W11446922 | Case, Outer (white) |
|
Immediately | $ 222.71 | ||||
| 6 | W11397086 | Cover, Long Vent (white) (Replaces: W11164798) |
|
Immediately | $ 62.15 | ||||
| 7 | W11360416 | Backplate, Oven |
|
$ 66.41 | |||||
| 8 | W11086309 | Grille, Long Vent (white) (Replaces: W11164793) |
|
$ 98.27 | |||||
| 9 | W11164786 | Grille, Light Access Vent (white) |
|
$ 98.23 | |||||
| 10 | W11164816 | Grille, Short Vent (white) |
|
$ 133.64 | |||||
| W11479911 | Harness, Door Motor Signal |
|
$ 30.03 | ||||||
| W11421368 | Harness, Main |
|
$ 123.61 | ||||||
| W11322425 | Harness, Communication (Replaces: W11300413) |
|
$ 133.13 | ||||||
| W11266688 | Harness, User Interface |
|
$ 131.53 | ||||||
| W11187937 | Harness, Ground Wire |
|
$ 22.15 | ||||||
| W11213885 | Harness, Left Touch Control (Replaces: W11101065) |
|
Immediately | $ 139.77 | |||||
| W11213883 | Harness, Right Touch Control (Replaces: W10916210) |
|
$ 139.47 | ||||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
