View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper

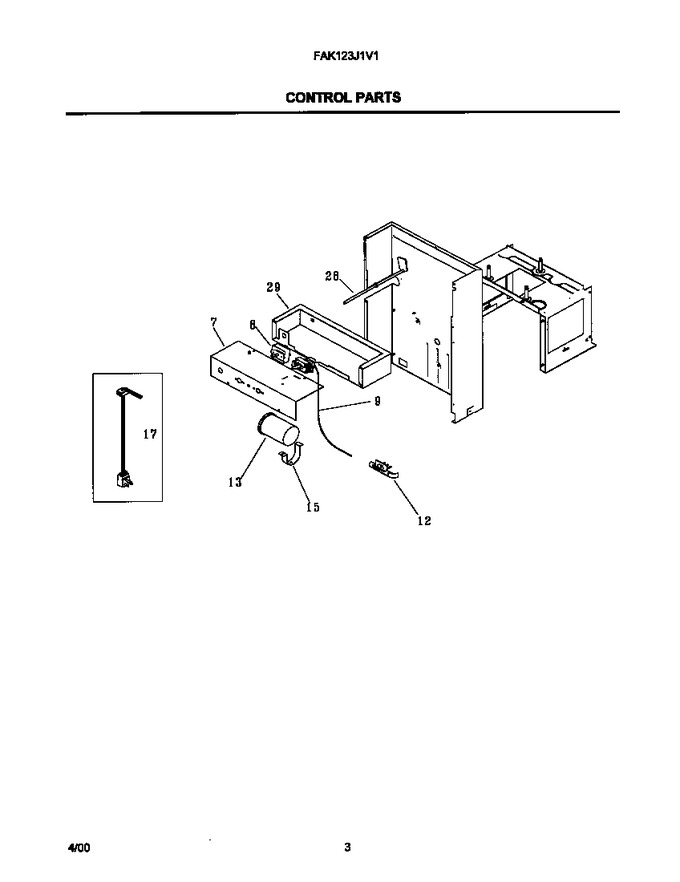

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309606501 | Panel-mounting,controls |
|
- | |||||
| 8 | 5303323284 | Switch-selector |
|
- | |||||
| 9 | 5303321674 | Control-temperature |
|
$ 144.59 | |||||
| 12 | 309321201 | Clip-control Bulb |
|
- | |||||
| 13 | 5304403167 | Capacitor,370 V ,35-15 |
|
- | |||||
| 14 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343106 | Cord-srv Type-a 14awg |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 28 | 309625301 | Door-ventilator,assembly |
|
- | |||||
| 29 | 309606402 | Control Box |
|
- |
