View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts

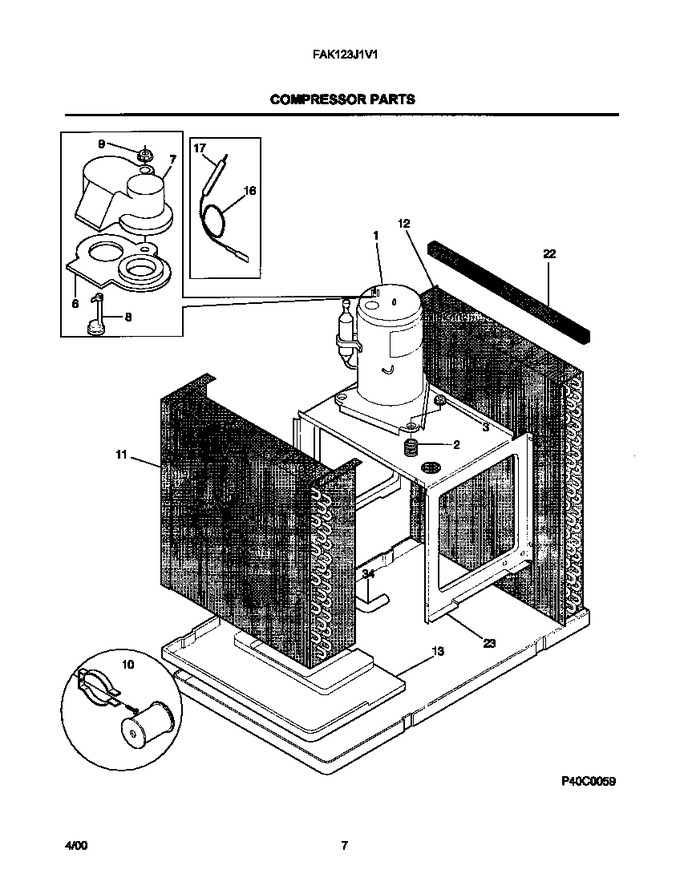

05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309616914 | Compr-tec Rga5512exa Shrt Std |
|
- | |||||
| 2 | 5303015945 | Grommet Compressor (3) |
|
- | |||||
| 3 | 5303015946 | Nut,plastic ,compressor ,(3) |
|
- | |||||
| 6 | 3201668 | Gasket - Terminal Cover |
|
- | |||||
| 7 | 5304405245 | Cover-terminal |
|
- | |||||
| 8 | 5304403611 | Overload Protector |
|
- | |||||
| 9 | 3201670 | Nut,terminal Cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 309617007 | Evaporator |
|
- | |||||
| 12 | 309617205 | Condenser |
|
- | |||||
| 13 | 309624101 | Tray-evaporator |
|
- | |||||
| 16 | 309327101 | Capillary Tube |
|
- | |||||
| 16 | 309327001 | Capillary Tube |
|
- | |||||
| 17 | 309325201 | Drier-filter |
|
- | |||||
| 22 | 5303313964 | Seal,condenser ,upper |
|
- | |||||
| 23 | 309614105 | Base,compressor |
|
- | |||||
| *51121 | 309627602 | Base Sl/c (ncs1403-g96y) |
|
- |
