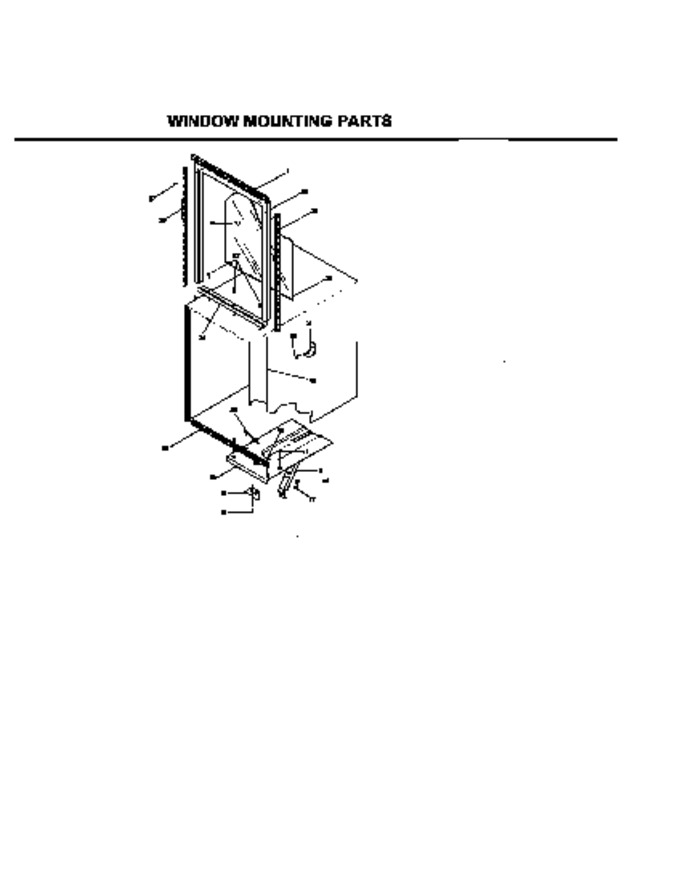

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303313968		Seal,frame ,top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
8	5304414113		Bracket Support,nsc1403 Grey		Appelez-nous	-
17	5308013771		Screw-wood,round Head ,8-15a X 0.750		Appelez-nous	-
20	5303295750		Screw, 8-18 X 0.750		Appelez-nous	-
25	5308047516		Panel-window,plastic		Appelez-nous	-
33	5304414118		Frame-expando Slide (ncs1403)		Appelez-nous	-
34	5304414112		Retainer-window Panel (1403)		Appelez-nous	-
35	5304414114		Plate-mounting (ncs1403) Grey		Appelez-nous	-
36	5308047524		Seal,mounting Plate		Appelez-nous	-
37	5308047558		Screw,pan Head `8-32d X 0.75 ,slotted		Appelez-nous	-
38	5308047562		Screw-adjusting,mounting Plate		Appelez-nous	-
39	5303313967		Seal,frame ,side ,(2)		Appelez-nous	-
40	5304414085		Bracket-safety-fin.(1403)grey		Appelez-nous	-
41	5300125233		Screw,pan Head `10-12a X 1.00 `slotted		Appelez-nous	-
42	5300507212		Screw,pan Head `10-12a X 1.75 ,slotted		Appelez-nous	-
43	5300507693		Screw,flat Head `10-12a X 2.50 `slotted		Appelez-nous	-
44	5300516543		Nut,hex Flange ,1/4-20		Appelez-nous	-
48	309305302		+channel-slide (ncs1403-g96y)				$ 45.68
*51122	309313602		Slide Frame Assy.		Appelez-nous	-
*51123	309000903		Instructions,installation		Appelez-nous	-
*51124	309625802		Kit-mounting New Front Sl/c		Appelez-nous	-
