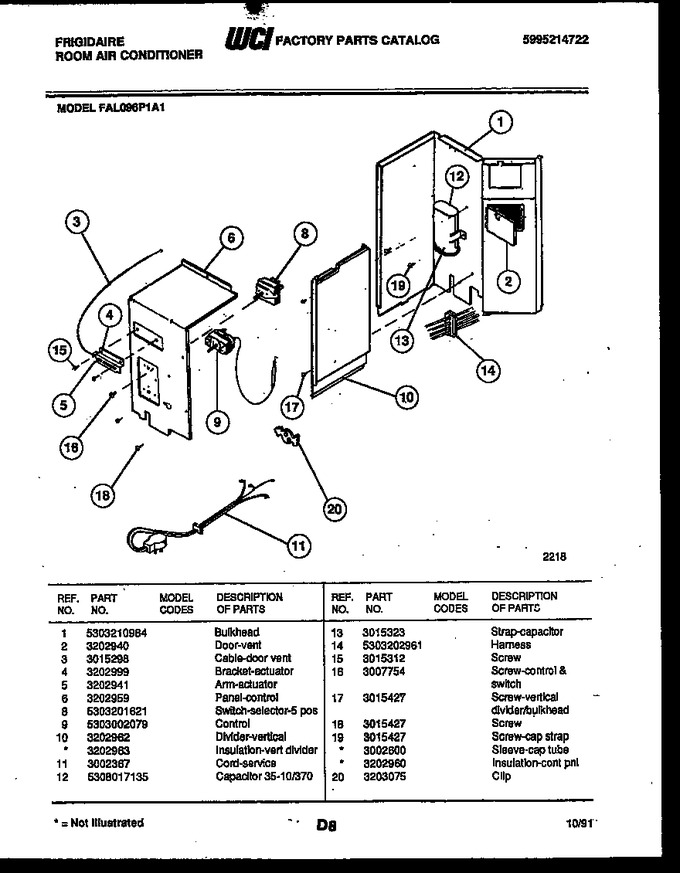

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead |
|
- | |||||
| 2 | 3202940 | Door-vent |
|
- | |||||
| 3 | 3015298 | Cable-door Vent |
|
- | |||||
| 4 | 3202999 | Bracket-actuator |
|
- | |||||
| 5 | 3202941 | Arm-actuator |
|
- | |||||
| 6 | 3202959 | Panel-control |
|
- | |||||
| 8 | 5303201621 | Switch-selector-5 Pos |
|
- | |||||
| 9 | 5303002079 | Control |
|
- | |||||
| 10 | 3202962 | Divider-vertical |
|
- | |||||
| 11 | 3002367 | Cord-service |
|
- | |||||
| 12 | 5308017135 | Capacitor 35-10/370 |
|
- | |||||
| 13 | 3015323 | Strap-capacitor |
|
- | |||||
| 14 | 5303202961 | Harness |
|
- | |||||
| 15 | 3015312 | Screw |
|
- | |||||
| 16 | 3007754 | Screw-control & Switch |
|
- | |||||
| 17 | 3015427 | Screw-vertical Divider/bulkhead |
|
- | |||||
| 18 | 3015427 | Screw |
|
- | |||||
| 19 | 3015427 | Screw-cap Strap |
|
- | |||||
| 20 | 3203075 | Clip |
|
- | |||||
| 10A | 3202963 | Insulation-vert Divider (non-illustrated) |
|
- | |||||
| 19A | 3002600 | Sleeve-cap Tube (non-illustrated) |
|
- | |||||
| 19B | 3202960 | Insulation-cont Pnl (non-illustrated) |
|
- |
