SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

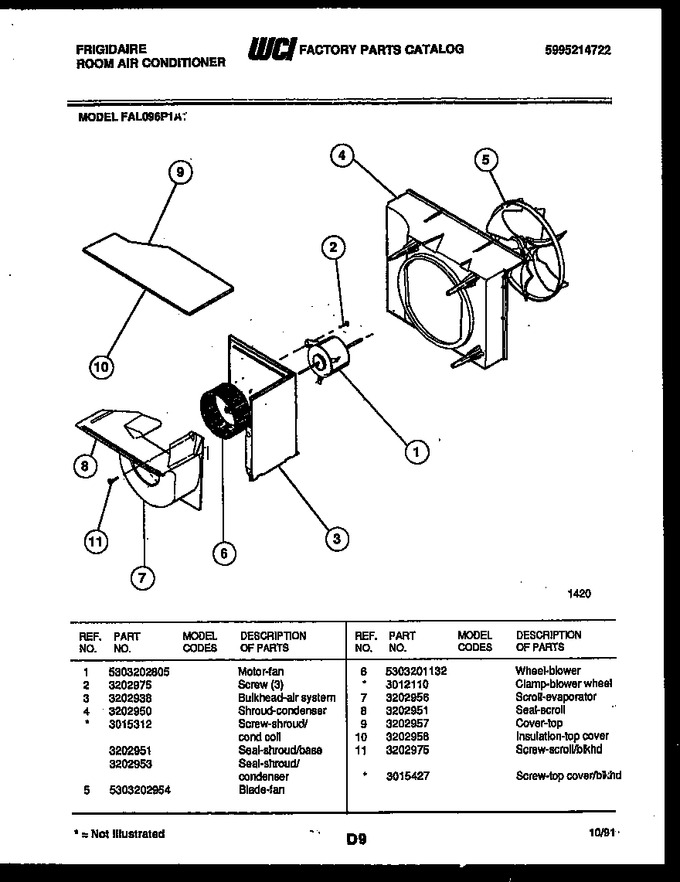

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202805 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw (3) |
|
- | |||||
| 3 | 3202938 | Bulkhead-air System |
|
- | |||||
| 4 | 3202950 | Shroud-condenser |
|
- | |||||
| 5 | 5303202954 | Blade-fan |
|
- | |||||
| 6 | 5303201132 | Wheel - Blower |
|
- | |||||
| 7 | 3202956 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 9 | 3202957 | Cover-top |
|
- | |||||
| 10 | 3202958 | Insulation-top Cover |
|
- | |||||
| 11 | 3202975 | Screw-scroll/blkhd |
|
- | |||||
| *55003 | 3015427 | Screw-top Cover/blkhd |
|
- | |||||
| 4A | 3015312 | Screw-shroud/cond Coil (non-illustrated) |
|
- | |||||
| 4B | 3202951 | Seal-shroud/base |
|
- | |||||
| 4C | 3202953 | Seal-shroud/condenser |
|
- | |||||
| 6A | 3012110 | Clamp-blower Wheel (non-illustrated) |
|
- |
