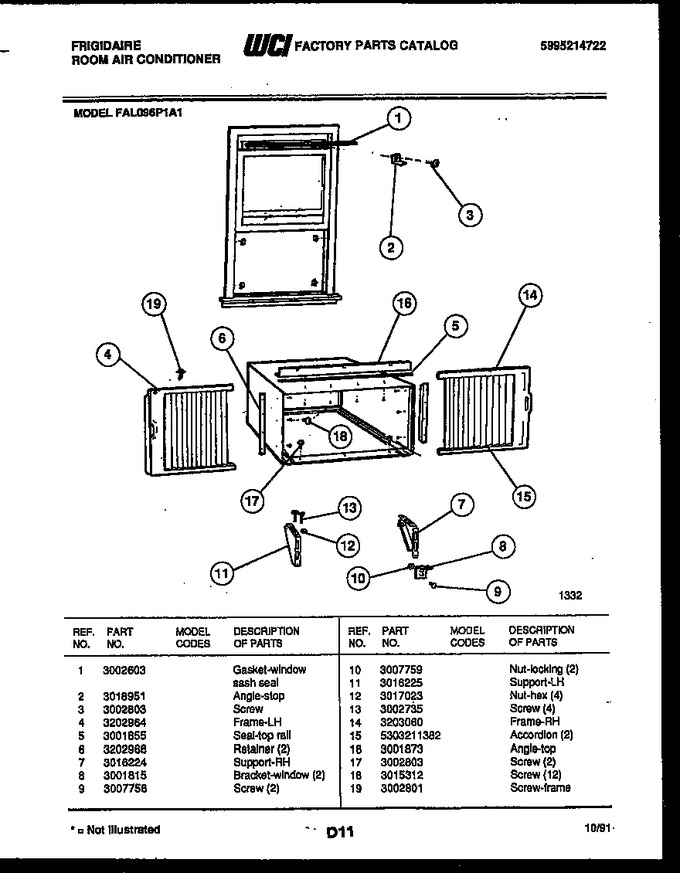

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Gasket-window Sash Seal |
|
- | |||||
| 2 | 3018951 | Angle-stop |
|
- | |||||
| 3 | 3002803 | Screw |
|
- | |||||
| 4 | 3202964 | Frame-lh |
|
- | |||||
| 5 | 3001855 | Seal-top Rail |
|
- | |||||
| 6 | 3202966 | Retainer (2) |
|
- | |||||
| 7 | 3016224 | Support-rh |
|
- | |||||
| 8 | 3001815 | Bracket-window (2) |
|
- | |||||
| 9 | 3007756 | Screw (2) |
|
- | |||||
| 10 | 3007759 | Nut-locking (2) |
|
- | |||||
| 11 | 3016225 | Support-lh |
|
- | |||||
| 12 | 3017023 | Nut-hex (4) |
|
- | |||||
| 13 | 3002735 | Screw (4) |
|
- | |||||
| 14 | 3203060 | Frame-rh |
|
- | |||||
| 15 | 5303211382 | Accordion (2) |
|
- | |||||
| 16 | 3001873 | Angle-top |
|
- | |||||
| 17 | 3002803 | Screw (2) |
|
- | |||||
| 18 | 3015312 | Screw (12) |
|
- | |||||
| 19 | 3002801 | Screw-frame |
|
- |
