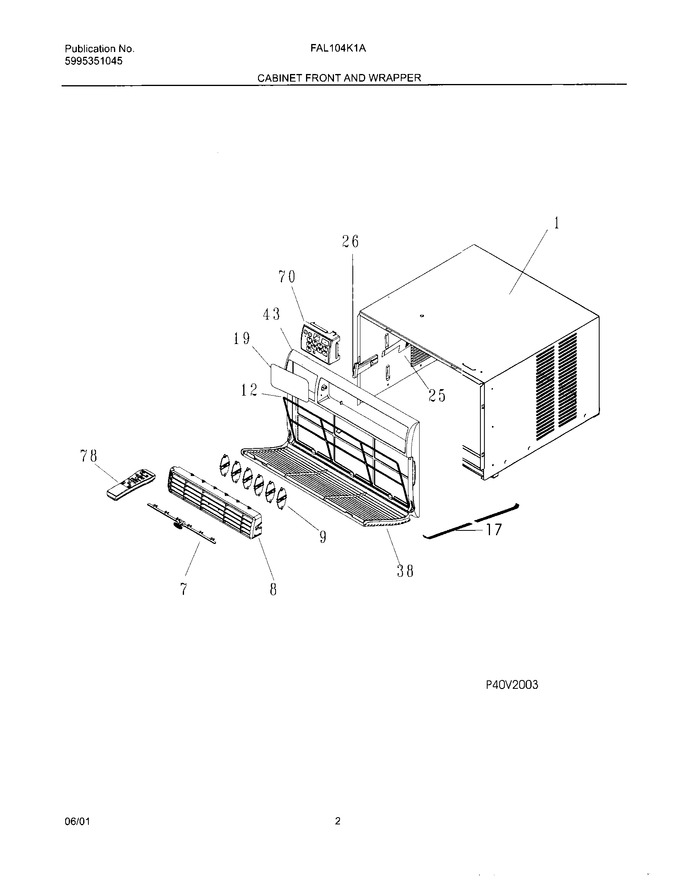

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309609212		Cabinet,sleeve ,complete Assy		Appelez-nous	-
2	5304414101		Grill,rear		Appelez-nous	-
7	309638601		Link		Appelez-nous	-
8	309639701		Louver,horizontal		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343502		Filter-air,8.32 X 22.40				$ 29.82
17	309640302		Front-panel Complete				$ 137.97
19	309340903		Overlay,frigidaire		Appelez-nous	-
21	5314949603		Seal-chassis,bottom		Appelez-nous	-
25	309328602		Door-vent,fresh Air		Appelez-nous	-
26	309639401		Handle,vent Door		Appelez-nous	-
38	309639601		Panel-front				$ 86.21
43	309639501		Frame-front,22tc				$ 108.62
70	309342301		Enclosure,elec Control Mt				$ 18.38
78	309350502		Remote Control,transmitter ,with Batteries				$ 108.26
NI	5304402119		Seal-tube		Appelez-nous	-
NI	309640402		Louver		Appelez-nous	-
NI	309330201		Detent-vent				$ 26.30
