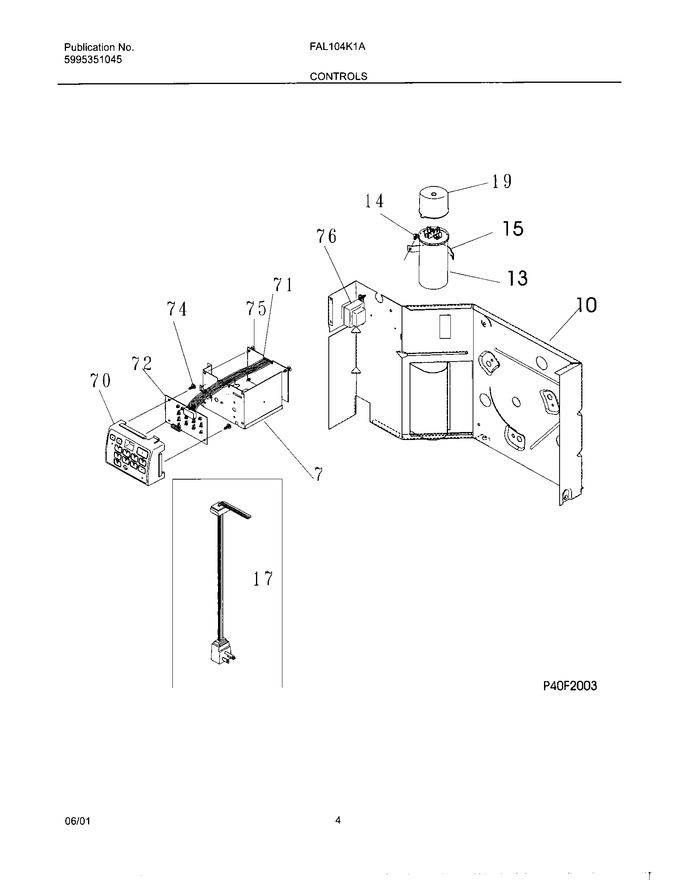

05 - Control
07 - Airhand
09 - System
11 - Mounting
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309605605 | Box-control |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 12 | 08017123 | Clip-control Bulb |
|
- | |||||
| 13 | 5303318963 | Capacitor,370 V |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343104 | Cord-service |
|
- | |||||
| 70 | 309342301 | Enclosure,elec Control Mt |
|
$ 18.38 | |||||
| 71 | 309350401 | Pc Board,power,sagem |
|
- | |||||
| 72 | 309350402 | Pc Board,input |
|
- | |||||
| 74 | 3201861 | Screw-bracket (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Support-pc Board |
|
- | |||||
| 76 | 309111601 | Transformer,120/12 Volt |
|
- | |||||
| NI | 309111201 | Grommet,wire Protector |
|
- | |||||
| NI | 5304415017 | Protector |
|
- |
