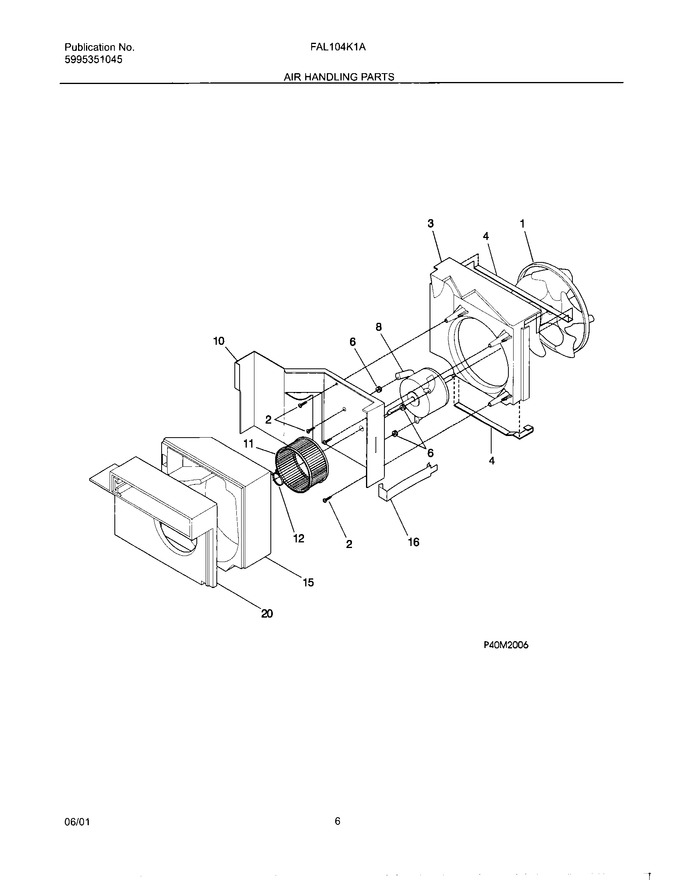

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303320769		Fan Blade,with Clamp		Appelez-nous	-
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	3202950		Housing-fan		Appelez-nous	-
4	3202953		Seal-fan Housing,top		Appelez-nous	-
5	3202951		Seal-fan Housing,bottom		Appelez-nous	-
8	309630602		Motor-fan,115 V				$ 462.53
10	5303316617		Bulkhead		Appelez-nous	-
11	309608901		Blower Wheel,cavity 1&2		Appelez-nous	-
11	309608902		Blower-wheel,cavity 3&4				$ 62.42
12	309112101		Clamp-blower		Appelez-nous	-
13	309605902		Cover,top		Appelez-nous	-
15	309605702		Housing-blower,evap Scroll		Appelez-nous	-
20	309605802		Plate-blower Housing,scroll Plate		Appelez-nous	-
NI	5303012110		Clamp-blower				$ 8.14
