SELECT A DIAGRAM

01 - Cover Sheet

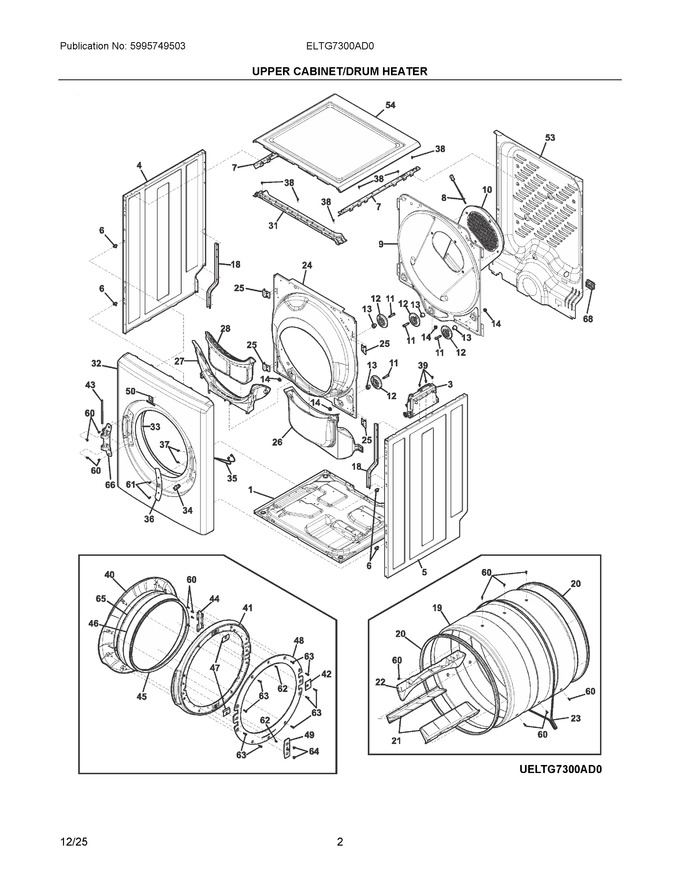

02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134690212		Base, Dryer, Washed				$ 161.51
3	5304536167		Main Board, Assembly, Dryer, W/housing		Appelez-nous	-
4	140262265139		Side Panel, Dryer, Lh		Appelez-nous	-
5	140262264132		Side Panel, Dryer, Rh		Appelez-nous	-
6	5304505102		Clip, Front Panel, (4)				$ 13.74
7	5304529787		Brace, Side Panel		Appelez-nous	-
8	5304520302		Thermistor, Inlet			Immediately	$ 53.96
9	5304521410		Bulkhead, Panel, White, Rear				$ 195.92
10	5304515366		Duct, Heat, Rear				$ 144.59
11	4056015763		Shaft, Drum Roller, Shoulder Bolt		Appelez-nous	-
12	5304523152		Roller Wheel, Assembly, W/bearing			Immediately	$ 30.31
13	5304523154		Spacer, Drum Roller			Immediately	$ 26.76
14	5304523153		Nut, Lock			Immediately	$ 10.94
18	137029801		Bracket, Reinforcement, Backsheet				$ 33.26
19	137610700		Drum, Dryer Assy, 38", White			Immediately	$ 383.44
20	5304499489		Seal, Felt, Purple Stitches, Drum			Immediately	$ 56.69
21	137610610		Vane, Straight, White			Immediately	$ 65.21
22	5304531882		Vane, Mixing, Smooth				$ 20.24
23	134719300		Belt, "h", Poly V, 5 Rib			Immediately	$ 68.68
24	5304521391		Bulkhead, Front, White				$ 199.58
25	5304505118		Bracket, Bulkhead, (4)				$ 14.46
26	5304521401		Duct Assembly, Air, W/foam Top Seal			Immediately	$ 148.92
27	5304535939		Grill Assembly, Lint Filter, W/moist Senser				$ 139.49
28	140201067026		Filter Assembly, Lint, Clamshell			Immediately	$ 78.91
31	5304513567		Bracket, Front Panel		Appelez-nous	-
32	140235252107		Front Panel, Dryer		Appelez-nous	-
33	5304505111		Gasket, Foam, Front Panel				$ 81.91
34	134813664		Switch, Door, Grey			Immediately	$ 50.45
35	5304505258		Harness, Wiring, Door Switch				$ 44.39
36	5304513568		Latch Assembly, Door, W/cover			Immediately	$ 28.43
38	5304521493		Screw, Pn Hd, #10-16 X .375, 7.85mm		Appelez-nous	-
39	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
40	5304535945		Frame, Outer Door, Dryer		Appelez-nous	-
41	5304529789		Frame, Inner Door				$ 119.29
43	5304529871		Pin, Hinge			Immediately	$ 30.37
44	5304529788		Bracket, Hinge			Immediately	$ 138.80
45	5304538706		Gasket, Door Seal, Inner				$ 20.38
46	5304504999		Glass, Dryer Door, Black			Immediately	$ 167.09
47	5304505012		Clamp, Door Glass, (2)			Immediately	$ 18.79
48	5304536136		Ring, Door, Metal, Grey, Outer				$ 128.25
49	5304536127		Strike, Dryer Door			Immediately	$ 18.50
50	5304537116		Nameplate, Dryer Door, Electrolux				$ 12.74
52	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
53	137560431		Panel, Backsheet		Appelez-nous	-
54	140019235153		Work Top, Denim Blue		Appelez-nous	-
60	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
61	137285100		Screw, Pan Head, #8-18x.750				$ 17.53
62	5304536126		Screw, T-20 Typ B, 8-18 X 0.375				$ 8.53
63	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
64	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
65	5304505119		Shield, Heat, Door			Immediately	$ 117.85
66	5304535750		Hinge Assembly, Nest			Immediately	$ 106.07
68	5304535981		Cover, Rear Connection				$ 115.10
68A	134742002		Plug, Hinge Hole, Grey				$ 15.60
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
NI	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
NIA	5304529714		Shaft, Drum Roller, Shoulder Bolt			Immediately	$ 30.42
NIA	5304505407		Cord, Service, 15amp, 120v				$ 88.20

    View Diagram in Separate Window       Print Part List
