SELECT A DIAGRAM

01 - Cover Sheet


02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt

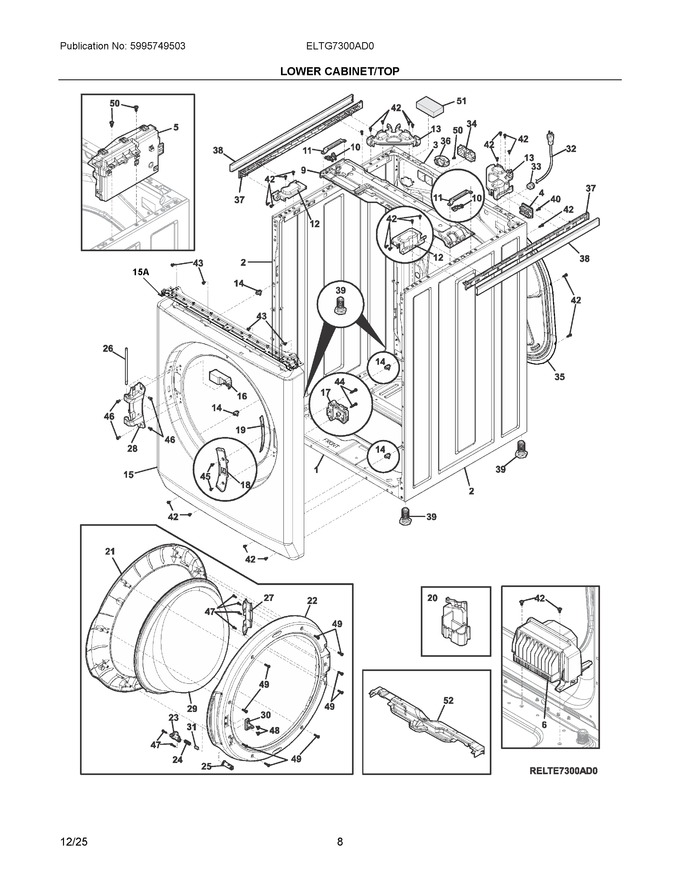

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134646007		Base, Washed			Immediately	$ 237.84
2	140026152284		Side Panel, Washer		Appelez-nous	-
3	5304529716		Panel, Back				$ 193.74
5	5304536158		Main Board, Assembly, Washer, W/housing			Immediately	$ 143.94
6	5304537935		Control Assembly, Motor				$ 138.83
9	5304535989		Bracket, Tub Suspension		Appelez-nous	-
10	5304505221		Protector, Tub Bracket, Spring Hook, (2)				$ 15.90
11	5304505101		Bracket, Spring, (2)				$ 13.01
12	5304535979		Marriage Bracket, Front Corner		Appelez-nous	-
13	5304535980		Marriage Bracket, Rear Corner		Appelez-nous	-
14	5304505102		Clip, Front Panel, (4)				$ 13.74
15	140235251109		Front Panel, Washer				$ 157.59
16	5304505104		Protection, Door Lock			Immediately	$ 14.90
17	5304514774		Door Lock, Assembly, W/switch			Immediately	$ 114.34
18	5304505103		Cover, Door Lock, Front Flange			Immediately	$ 236.25
19	5304505144		Cover, Hinge Holes				$ 4.19
20	5304505311		Support, Connector				$ 11.57
21	5304535944		Frame, Outer Door, Washer		Appelez-nous	-
22	5304536831		Door, Inner Frame		Appelez-nous	-
23	5304532026		Button, Door Vent		Appelez-nous	-
24	5304505329		Spring, Door Vent				$ 15.90
25	5304505328		Cap, Door Vent				$ 15.90
26	5304529871		Pin, Hinge			Immediately	$ 30.37
27	5304529750		Bracket, Hinge			Immediately	$ 19.52
28	140200690026		Hinge Assembly, Door				$ 32.63
29	5304529631		Glass, Door Window			Immediately	$ 110.40
30	5304505088		Latch, Door			Immediately	$ 34.62
31	5304505381		Magnet, Door Vent				$ 20.24
32	5304522525		Power Cord, Electric Svce			Immediately	$ 62.13
33	5303209428		Bushing, Strain Relief				$ 17.01
34	5304514806		Grommet, Dispenser, Back Panel				$ 8.68
35	134646206		Panel, Back   (Replaces: 8581346462048)				$ 52.83
36	134641100		Bracket, Drain Hose Mtg, Rear				$ 19.85
37	5304535982		Bracket, Side Trim, Black		Appelez-nous	-
38	140244181040		Cover, Side Trim		Appelez-nous	-
39	5304522555		Leveling Leg, Screw, Plastic			Immediately	$ 21.81
40	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
44	137262100		Screw, Pan Head Quad, 10-14 X 1.00			Immediately	$ 9.93
45	134261300		Clip, Drain Hose, Push-mount				$ 12.05
46	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
47	3205150		Screw, 8-12b X 0.750				$ 3.55
48	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
49	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
50	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
51	131931202		Dampener, Vibration, Foam				$ 17.35
52	5304535981		Cover, Rear Connection				$ 115.10
15A	140063409027		Bracket, Front Panel		Appelez-nous	-
NI	137086900		Bolt, Hwh, 9/32-15 X 3.75		Appelez-nous	-
NI	140108609045		Wiring Harness, Main, Washer				$ 120.37
NI	134591400		Plug, Hole, (7), Rear Cabinet				$ 21.27
NI	316008401		Washer, Flat, 1/4 Inch, Steel, (2)   (Replaces: 134477300)				$ 11.34
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NIA	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
NIA	5304510114		Cable, Grounding, To Cabinet, Main Board				$ 17.78
NIA	5304522524		Harness, Wiring, Door Lock Dbl				$ 59.95
NIA	131931203		Dampener, Vibration, Foam		Appelez-nous	-
NIB	140028175051		Harness, Wiring, Motor Control   (Replaces: 5304522522)				$ 24.01

    View Diagram in Separate Window       Print Part List
