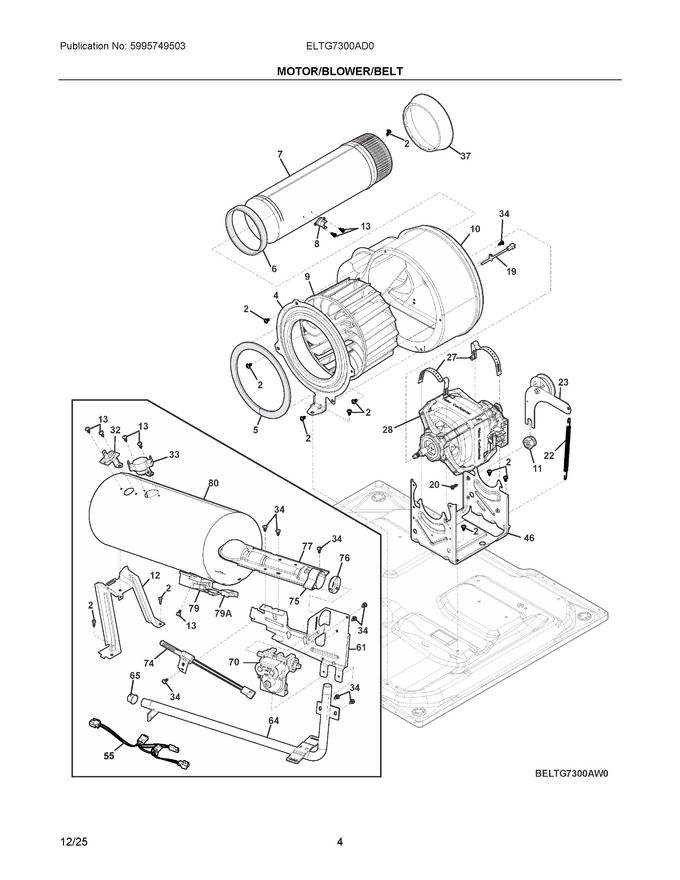

03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	5304505074		Spacer, Blower Front, Air Duct			Immediately	$ 23.13
5	5304505313		Gasket, Housing, Foam				$ 76.63
6	5304505318		Gasket, Spacer, Foam			Immediately	$ 16.63
7	5304515233		Tube, Exhaust, Rear				$ 55.67
8	134711401		Limiter, Thermal Exhaust, Flush Mount			Immediately	$ 35.48
9	5304513609		Blower Wheel, Assembly			Immediately	$ 60.48
10	5304529655		Blower Assembly, Airguide			Immediately	$ 119.29
11	5304525724		Spacer, Idler			Immediately	$ 35.42
12	134713901		Bracket, Heater/burner, Mounting		Appelez-nous	-
13	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 13.46
19	5304531948		Thermistor, Exhaust				$ 55.57
20	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
22	131601000		Spring, Idler Arm			Immediately	$ 82.20
23	134793511		Idler Arm Assy, W/pulley			Immediately	$ 44.53
27	134242400		Clamp, Motor Mtg.			Immediately	$ 35.76
28	5304529782		Motor, Main Drive, 115v 60hz			Immediately	$ 287.62
32	137539200		Limiter, Thermal			Immediately	$ 24.39
33	137116700		Thermostat, High Limit			Immediately	$ 40.40
34	5304528020		Cable Tie, Push Mount				$ 9.41
37	137553500		Cover, Exhaust Tube				$ 47.66
46	5304525693		Bracket, Motor				$ 45.55
55	137029500		Harness, Burner				$ 62.37
61	134715800		Bracket, Gas Valve		Appelez-nous	-
64	140295139012		Pipe, Gas				$ 43.24
65	08015112		Cap, Pipe		Appelez-nous	-
70	4056015433		Gas Valve, Control				$ 116.80
74	137524000		Igniter, Assembly			Immediately	$ 166.55
75	134258500		Shutter, Air				$ 31.90
76	134714401		Collar, Alignment, Gas Valve   (Replaces: 134714400)				$ 11.57
77	134197701		Burner, Gas				$ 44.82
79	5303281135		Sensor, Radiant			Immediately	$ 102.06
80	5304507398		Tube, Exhaust, Extension				$ 66.51
77A	134197700		Burner, Gas				$ 64.49
79A	134259100		Harness, Flame Sensor			Immediately	$ 19.64
NI	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
NI	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
