View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

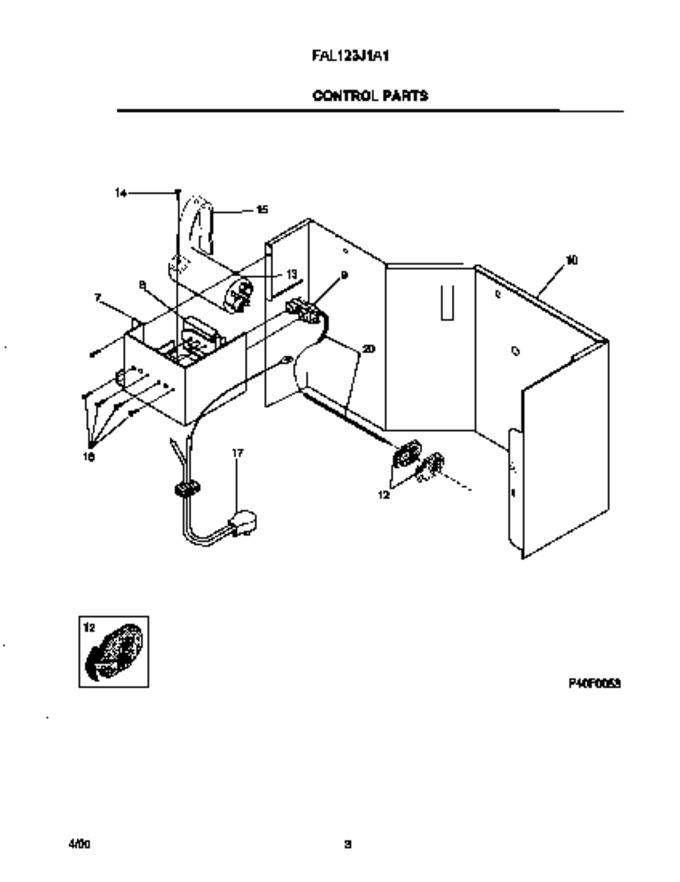

01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309605603 | Control Box |
|
- | |||||
| 8 | 5303316598 | Switch-selector |
|
- | |||||
| 9 | 5303316597 | Control-temperature |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 12 | 5303002169 | Clip-control Bulb |
|
- | |||||
| 13 | 5303318963 | Capacitor,370 V |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343104 | Cord-srv 115v/14ga |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- | |||||
| *65842 | 309111201 | Grommet,wire Protector |
|
- |
