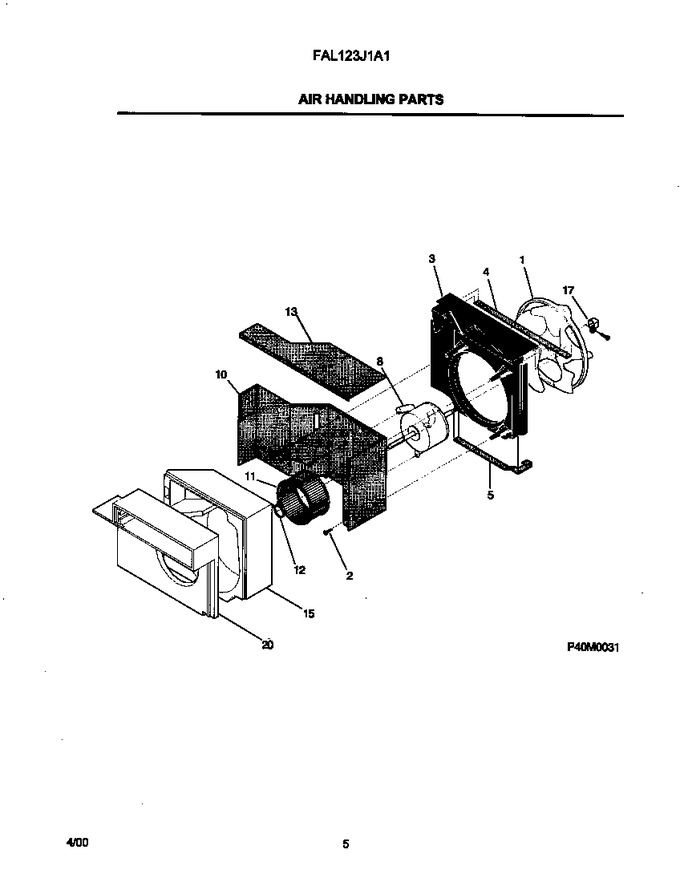

SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303320769 | Fan Blade,with Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 3202950 | Housing-fan |
|
- | |||||
| 4 | 3202953 | Seal-fan Housing,top |
|
- | |||||
| 5 | 3202951 | Seal-fan Housing,bottom |
|
- | |||||
| 7 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 8 | 309630602 | Motor-fan,115 V |
|
$ 462.53 | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 11 | 309608901 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 13 | 309605902 | Cover,top |
|
- | |||||
| 15 | 309605702 | Housing-blower,evap Scroll |
|
- | |||||
| 20 | 309605802 | Plate-blower Housing,scroll Plate |
|
- |
