Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304407864 Compr-sanyo Rot(806-934-42t) Appelez-nous -
2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 5303272298 Gasket-cover Appelez-nous -
7 3206230 Cover-terminal Appelez-nous -
8 5303016697 Overload Protector Appelez-nous -
9 5303211017 Nut-cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 309606105 Evap Assy-22so 2rw/20fpi Appelez-nous -
12 5304407866 Cond Assy-22sa 3rw 15fpi Appelez-nous -
13 309606001 Tray-evaporator Appelez-nous -
14 5304414418 Base-22tc Staked (ncs1403) Appelez-nous -
16 5308017120 Capillary Tube Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -
36 5303303558 Strap-chassis Pull Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

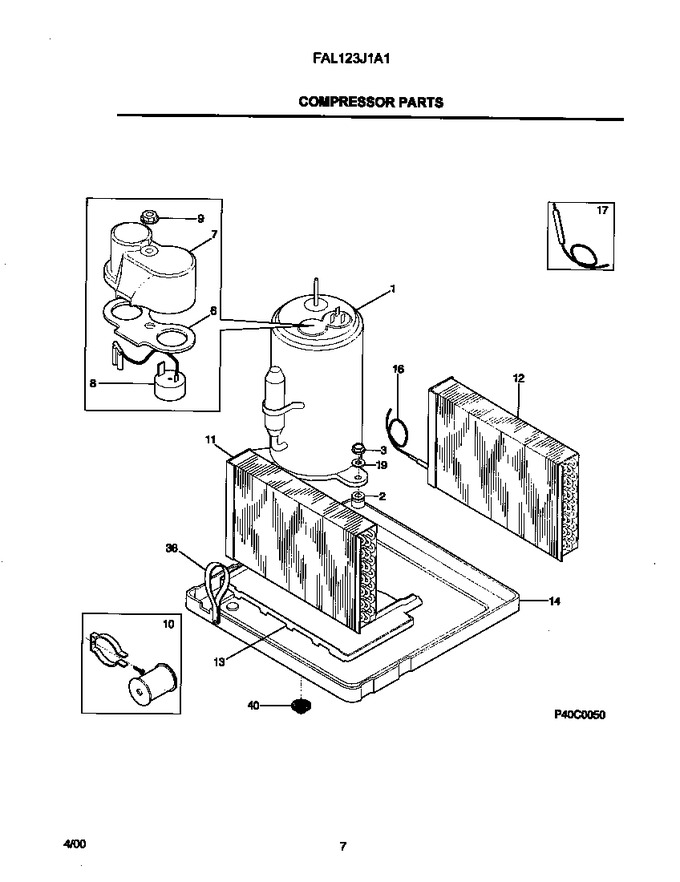

Diagram for FAL123J1A1
