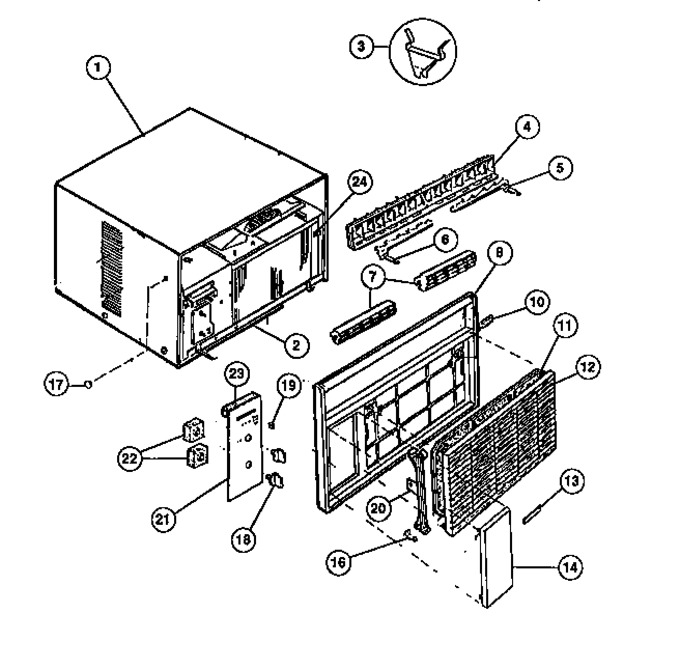

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271903		Nameplate-grille (non-illustrated)		Appelez-nous	-
1	5303015315		Wrapper		Appelez-nous	-
1	5303210207		Grille Rear (non-illustrated)		Appelez-nous	-
2	5303212504		Seal Chassis Btm		Appelez-nous	-
3	5303001844		Clip		Appelez-nous	-
4	5303002459		Louver W/link		Appelez-nous	-
5	5303002162		Link-rh		Appelez-nous	-
6	5303002163		Link-lh		Appelez-nous	-
7	5308017160		Louver		Appelez-nous	-
8	5308017179		Front Complete		Appelez-nous	-
10	08017132		Seal-evap Outlet (non-illustrated)		Appelez-nous	-
10	08016401		Seal, Mullion		Appelez-nous	-
11	5308017190		Filter		Appelez-nous	-
12	5303200420		Panel		Appelez-nous	-
13	08017126		Name Plate		Appelez-nous	-
14	5308016196		Door		Appelez-nous	-
16	5308010914		Clip-front To Base		Appelez-nous	-
17	5303271902		Plug Button		Appelez-nous	-
18	5308016109		Knob-control		Appelez-nous	-
19	5303002189		Knob-slide		Appelez-nous	-
20	5308017138		Track (2)		Appelez-nous	-
21	5303284124		Dial Plate		Appelez-nous	-
22	5303001775		Spacer		Appelez-nous	-
23	5303001984		Seal		Appelez-nous	-
24	5303016223		Bracket-front		Appelez-nous	-
