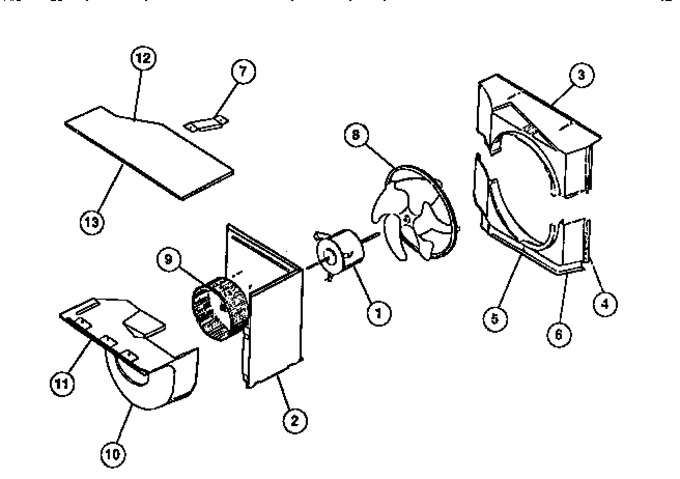

04 - Air Handling Parts
05 - Evaporator, Condenser
06 - Compressor
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017346 | Motor-fan |
|
- | |||||
| 1 | 3202975 | Screw-motor Mtg (non-illustrated) |
|
- | |||||
| 2 | 3015295 | Bulkhead - Air |
|
- | |||||
| 3 | 5303015305 | Shroud-condenser Upper |
|
- | |||||
| 4 | 3015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- | |||||
| 4 | 5303015304 | Shroud-condenser Lower |
|
- | |||||
| 5 | 5303015311 | Seal |
|
- | |||||
| 6 | 3016696 | Seal |
|
- | |||||
| 7 | 5303015306 | Bracket-shroud To Bulkhead |
|
- | |||||
| 7 | 5303015427 | Screw-brkt To Blkhd (non-illustrated) |
|
- | |||||
| 8 | 5303017959 | Blade-fan |
|
- | |||||
| 9 | 5303015309 | Wheel-blower |
|
- | |||||
| 10 | 5303015310 | Scroll-evaporator |
|
- | |||||
| 11 | 5303015311 | Seal |
|
- | |||||
| 12 | 5303015313 | Cover - Top |
|
- | |||||
| 13 | 3015314 | Insulation-cover |
|
- | |||||
| 13 | 5303012110 | Clamp Blower Wheel (non-illustrated) |
|
