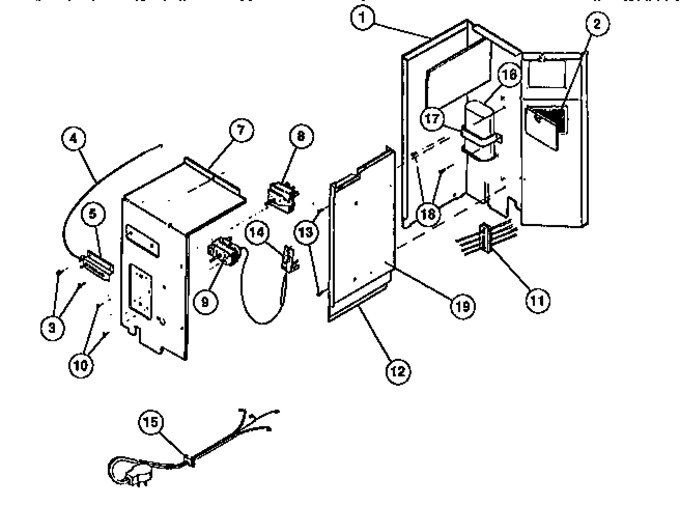

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015296		Bulkhead - Control		Appelez-nous	-
2	5303015297		Door-vent		Appelez-nous	-
3	08002968		Screw-actuator		Appelez-nous	-
4	5303015298		Cable-door Vent		Appelez-nous	-
5	5303015299		Arm-actuator (non-illustrated)		Appelez-nous	-
5	5303202999		Bracket-actuator		Appelez-nous	-
7	3016763		Panel - Control		Appelez-nous	-
8	5303208666		Switch, Select		Appelez-nous	-
9	5303015319		Control		Appelez-nous	-
10	5303007754		Screw-control Switch		Appelez-nous	-
11	5303017345		Harness-wire		Appelez-nous	-
12	3015321		Divider - Vertical		Appelez-nous	-
13	5303015427		Screw - Divider		Appelez-nous	-
14	5303211009		Spacer-control Bulb		Appelez-nous	-
15	5308017362		Service Cord		Appelez-nous	-
16	5303019026		Capacitor 10/40-370		Appelez-nous	-
17	5303015323		Strap, Capcitor		Appelez-nous	-
18	5303015427		Screw-strap		Appelez-nous	-
19	3015321		Insulation-vertical Divider		Appelez-nous	-
