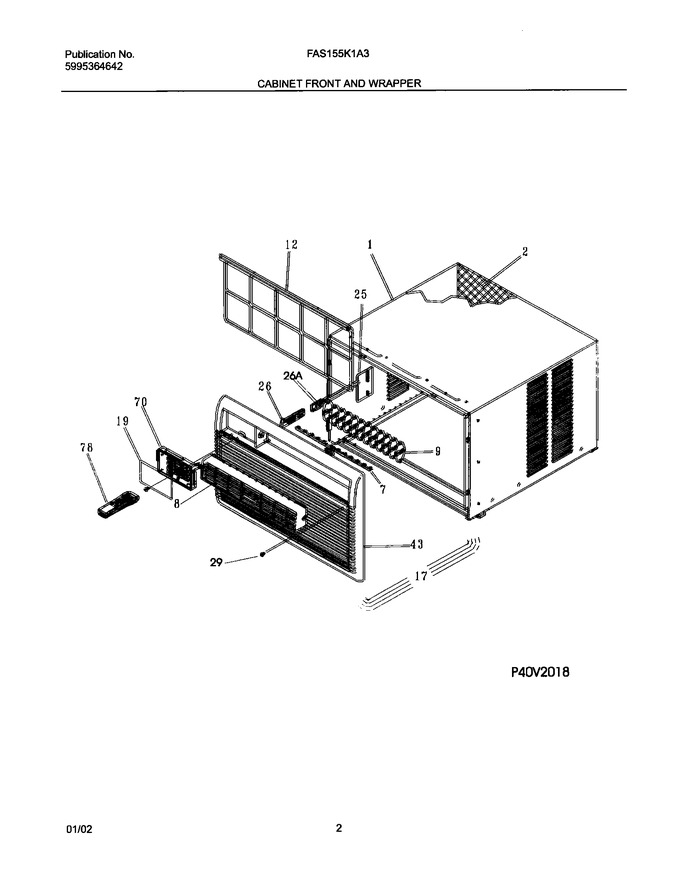

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309632704		Cabinet,sleeve ,top Louvers		Appelez-nous	-
2	309632804		Grille,rear ,with Rail		Appelez-nous	-
7	309631104		Link-handle,vertical Louver		Appelez-nous	-
8	309630804		Louver,horizontal		Appelez-nous	-
8	309633305		Louver Assy,horizontal ,incl-7,8x,9		Appelez-nous	-
9	309631004		Louver,vertical		Appelez-nous	-
12	309631404		Filter-air,molded Plastic		Appelez-nous	-
17	309633205		Front-cabinet,complete Assy		Appelez-nous	-
19	309341002		Overlay,frig Gallery		Appelez-nous	-
25	309321401		Door-vent,actuator		Appelez-nous	-
26	309330404		Handle-vent,gray		Appelez-nous	-
29	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
43	309630904		Panel,cabinet Front		Appelez-nous	-
70	309342401		Enclosure,elec Control Mt		Appelez-nous	-
78	309350502		Remote Control,transmitter ,with Batteries				$ 108.26
26A	309330202		Detent-vent		Appelez-nous	-
NI	5303212504		Seal-sleeve/chassis,bottom		Appelez-nous	-
NI	5304402119		Seal-tube		Appelez-nous	-
