SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts

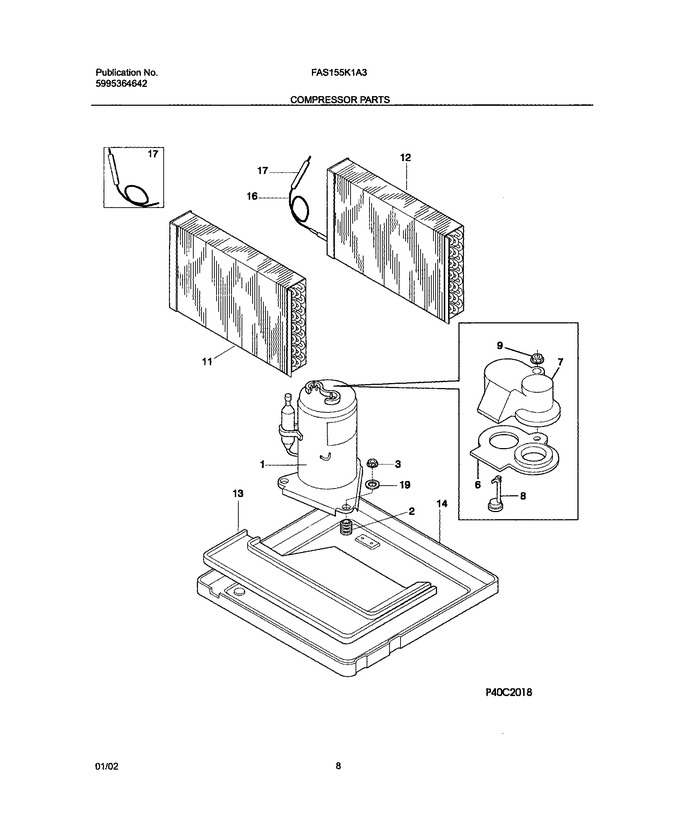

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303272298		Gasket-cover,terminal		Appelez-nous	-
7	3206230		Cover-terminal		Appelez-nous	-
9	5303211017		Nut,terminal Cover		Appelez-nous	-
13	309623501		Tray-evaporator		Appelez-nous	-
14	309632907		Base-compressor		Appelez-nous	-
16	5303289577		Capillary Tube,40 Inch Long ,cut-to-length		Appelez-nous	-
17	5304417722		Tube-process,cond. Outlet		Appelez-nous	-
19	309112501		Washer,metallic		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
F1	5303925103		Compressor,w/overload		Appelez-nous	-
F11	309634103		Evaporator		Appelez-nous	-
F12	5303303600		Condenser		Appelez-nous	-
F8	5303016697		Overload Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
