SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts

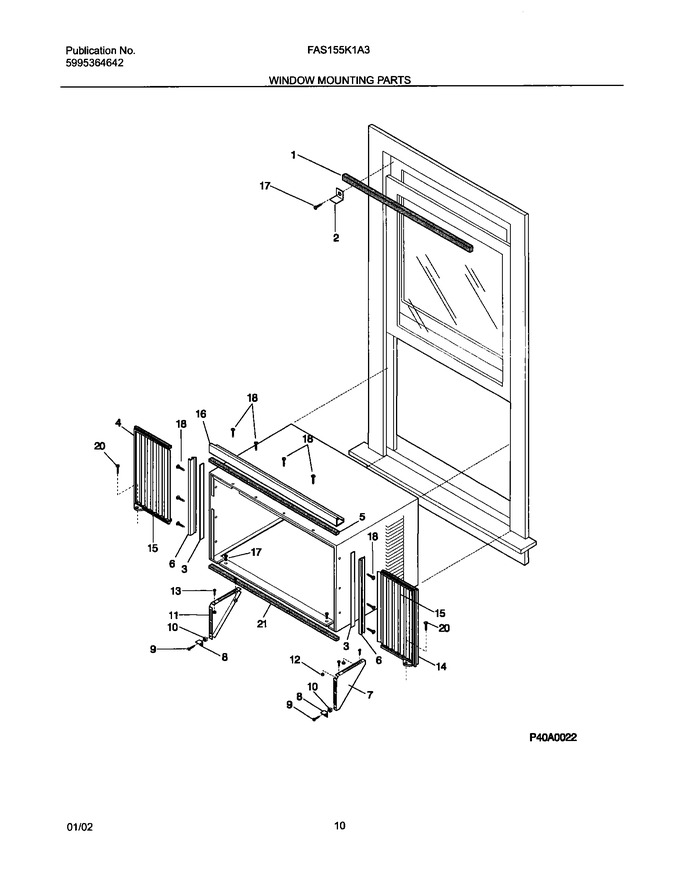

11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal-window Frame,stuffer		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
3	5303276728		Seal,retainernot Used.		Appelez-nous	-
4	5304414928		Frame,lh		Appelez-nous	-
5	5304409250		Seal-top Rail		Appelez-nous	-
6	5304414933		Retainer,accordian		Appelez-nous	-
7	5304414105		Bracket-support,rh		Appelez-nous	-
8	3001815		Bracket - Support		Appelez-nous	-
9	3007756		Screw		Appelez-nous	-
10	3007759		Nut - Bracket		Appelez-nous	-
11	5304414106		Bracket-support,lh		Appelez-nous	-
12	3017023		Nut,hex ,10-32 ,2		Appelez-nous	-
13	5303281649		Screw,support		Appelez-nous	-
14	5304414929		Frame,rh		Appelez-nous	-
15	5304414930		Closure,accordian Type ,window Mount		Appelez-nous	-
16	5304414116		Rail,top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5308012680		Screw, Rail		Appelez-nous	-
20	3002801		Screw,8-18b X 0.500		Appelez-nous	-
21	5303212504		Seal-sleeve/chassis,bottom		Appelez-nous	-
NI	5304409248		Kit-hardware,mounting		Appelez-nous	-
NI	5304409249		Seal-hole,shipping Screws		Appelez-nous	-
NI	309367416		Energy Guide		Appelez-nous	-
NI	309313204		Kit-mounting Support		Appelez-nous	-
NI	309313303		Kit-window Mounting,heavy Duty		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
