01 - Cover
02 - Cabinet Front And Wrapper

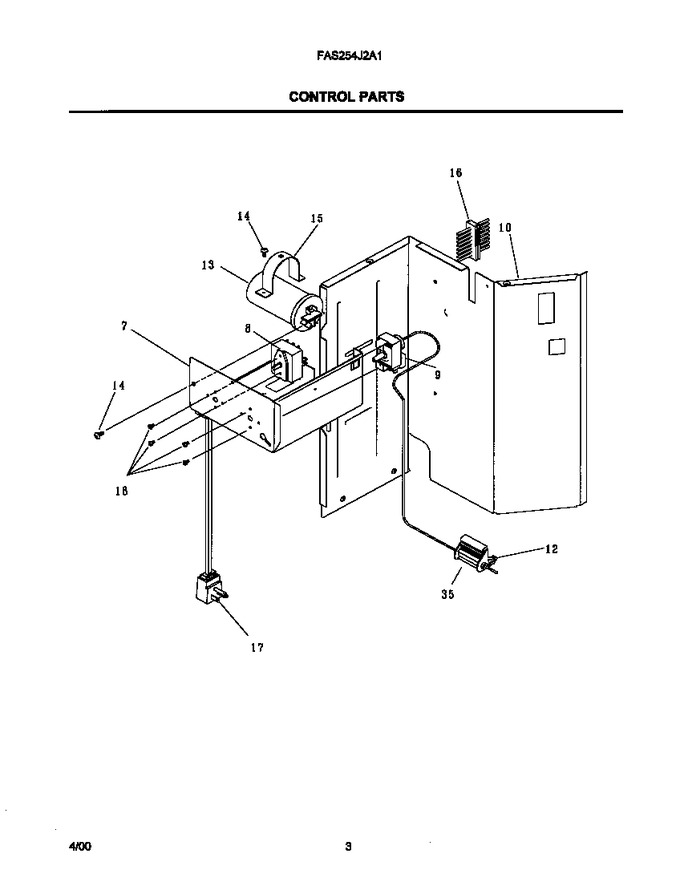

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309630401 | Control Box |
|
- | |||||
| 8 | 5304410883 | Switch-7pos 3sp Short |
|
- | |||||
| 9 | 5304410884 | Cntrl-air Tmp 23amp Rating |
|
- | |||||
| 10 | 309623601 | Bulkhead,control System |
|
- | |||||
| 12 | 309331801 | Clip-control Bulb,(2) |
|
- | |||||
| 13 | 5303316594 | Capacitor,370 V ,7.5x35 Mfd |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 16 | 5304408753 | Harness-3s;hdtc;bristol;12awg |
|
- | |||||
| 17 | 309343114 | Cord-srv Type-d 12awg |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- |
