Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304408299 Compr-bristol H29b28uabcx Appelez-nous -
2 5303286606 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
5 5303002069 Clamp,terminal Cover Appelez-nous -
6 5303002068 Gasket,terminal Cover Appelez-nous -
7 5303002067 Cover,compr Terminal Appelez-nous -
11 309634201 Evap-assy Hdtc 3row/17fpi Appelez-nous -
12 5303306719 Condenser Special Order $ 574.61

13 309623501 Tray-evaporator Appelez-nous -
14 309632906 Base-stud Assy (ncs1403-g96y) Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

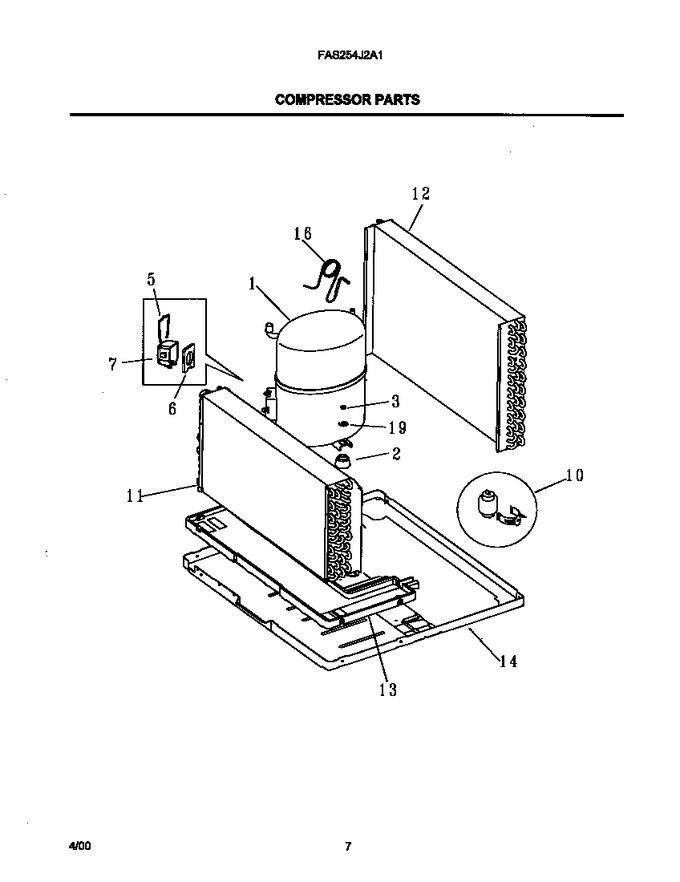

Diagram for FAS254J2A1
