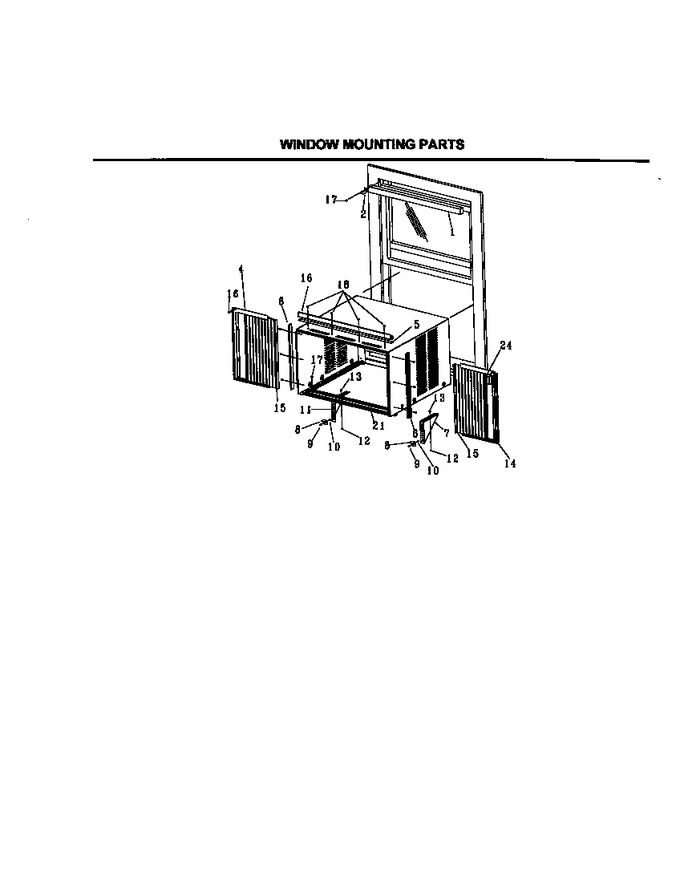

06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304407729 | Seal-window Frame,top |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5304414928 | Frame,lh |
|
- | |||||
| 5 | 5304409250 | Seal-top Rail |
|
- | |||||
| 6 | 5304414933 | Retainer-hdso A-kit (ncs1403) |
|
- | |||||
| 7 | 5304414931 | Support-rh |
|
- | |||||
| 11 | 5304414932 | Support-lh |
|
- | |||||
| 14 | 5304414929 | Frame,rh |
|
- | |||||
| 15 | 5304414930 | Accordian |
|
- | |||||
| 16 | 5304414116 | Top Rail-hd (ncs1403-g96y) |
|
- | |||||
| 21 | 5303212504 | Seal-bottom |
|
- | |||||
| *56361 | 309313303 | Kit-wing/retainer Support |
|
- | |||||
| *56362 | 5304409248 | Hardware-mounting |
|
- | |||||
| *56363 | 5304409249 | Seal-hole,shipping Screws |
|
- |
