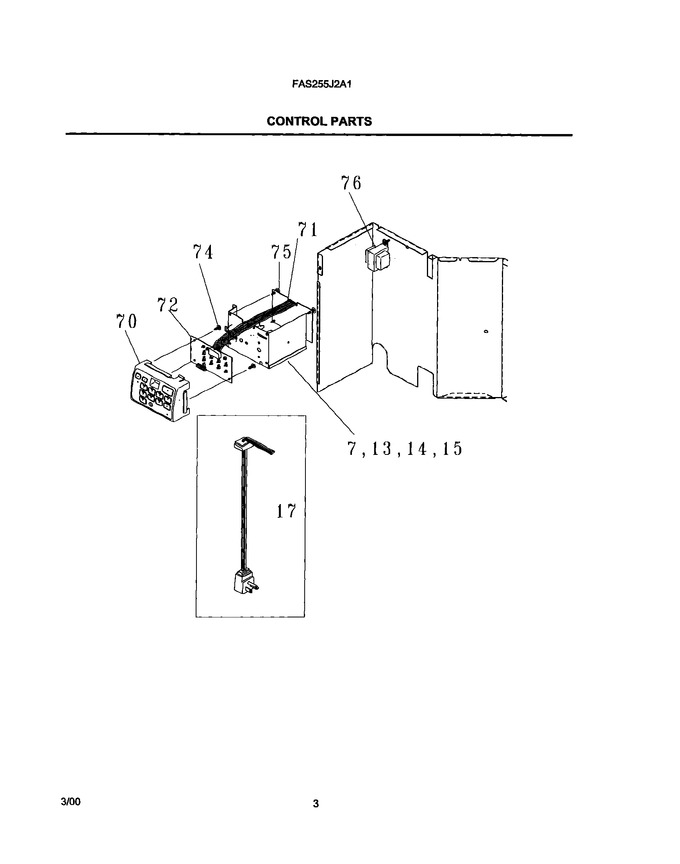

04 - Control Parts
06 - Air Handling Parts
08 - Compressor Parts
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309630403 | No.box-control Hdtc Elec.control |
|
- | |||||
| 10 | 309623601 | No.bulkhead-contr Side Hdt/a;t/c |
|
- | |||||
| 12 | 5304414108 | No.thermistor Holder |
|
- | |||||
| 14 | 5303303691 | Screw |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 70 | 309342401 | No.encloure-hdtc Brands |
|
- | |||||
| 71 | 309340503 | Pc Board,power |
|
- | |||||
| 72 | 309340701 | +input-board Hdtc Srs |
|
- | |||||
| 74 | 3201861 | Screw,6-20ab X 0.38 (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Hardware,pcb Support |
|
- | |||||
| F13 | 5303316594 | Capacitor,370 V ,7.5x35 Mfd |
|
- | |||||
| F17 | 309343114 | Cord-electric Power,type-d ,12 Awg ,230 V |
|
- | |||||
| F76 | 309111602 | Transformer 230/volts |
|
- | |||||
| NI | 5304415035 | Thermistor |
|
- | |||||
| NI | 5304408753 | Harness-3s;hdtc;bristol;12awg |
|
- |
