New Model Search:

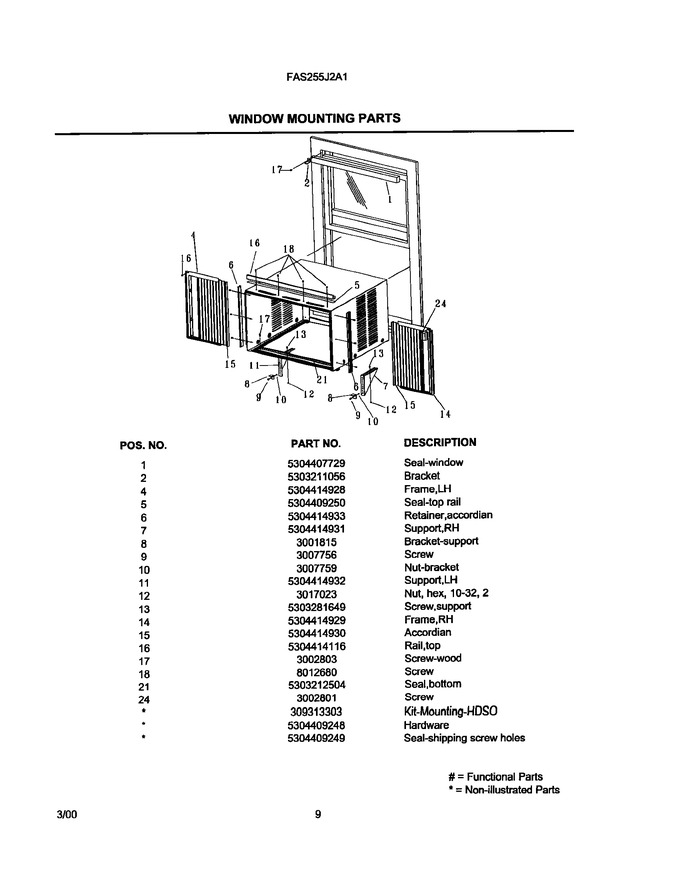

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304407729 | Seal,2indow Stuffer |
|
- | |||||
| 2 | 5303211056 | Angle-stop |
|
- | |||||
| 4 | 5304414928 | Frame,lh |
|
- | |||||
| 5 | 5304409250 | Seal,top Rail/cab |
|
- | |||||
| 6 | 5304414933 | Retainer,accordian |
|
- | |||||
| 7 | 5304414931 | Support-rh |
|
- | |||||
| 8 | 3001815 | Bracket |
|
- | |||||
| 9 | 3007756 | Gasket |
|
- | |||||
| 10 | 3007759 | Nut - Bracket |
|
- | |||||
| 11 | 5304414932 | Support-lh |
|
- | |||||
| 12 | 3017023 | Hex Nut (4) |
|
- | |||||
| 13 | 5303281649 | Screw |
|
- | |||||
| 14 | 5304414929 | Frame,rh |
|
- | |||||
| 15 | 5304414930 | Accordian |
|
- | |||||
| 16 | 5304414116 | Rail,top |
|
- | |||||
| 17 | 3002803 | Screw |
|
- | |||||
| 18 | 8012680 | Screw |
|
- | |||||
| 21 | 5303212504 | Seal |
|
- | |||||
| 24 | 3002801 | Screw |
|
- | |||||
| NI | 309313303 | No.kit-wing/retainer Support |
|
- | |||||
| NI | 5304409248 | Hardware Kit |
|
- | |||||
| NI | 5304409249 | Seal,ship Screw Hole |
|
- |
