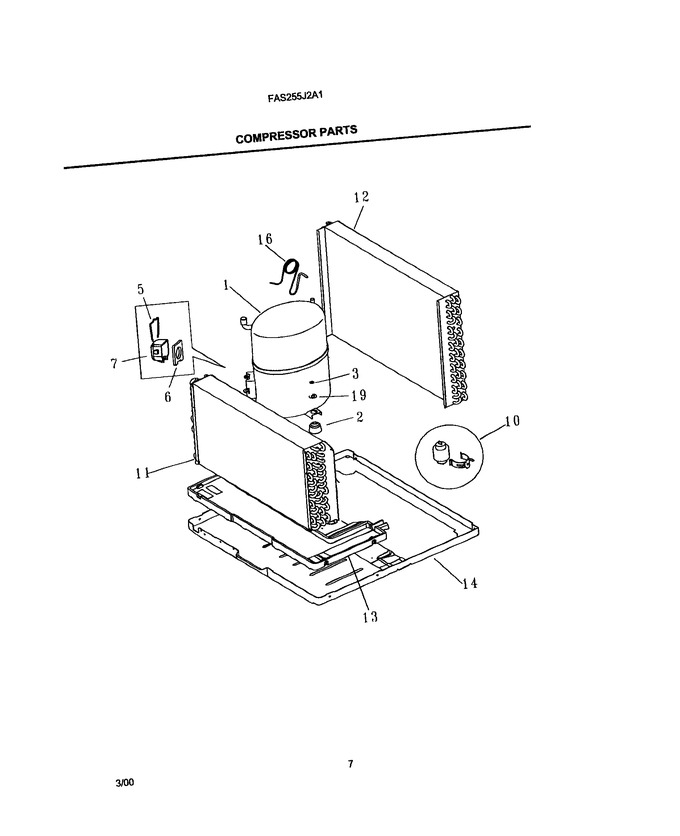

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303286606 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 5 | 5303002069 | Clamp |
|
- | |||||
| 6 | 5303002068 | Gasket |
|
- | |||||
| 7 | 5303002067 | Cover |
|
- | |||||
| 13 | 309623501 | Tray,evap Drip |
|
- | |||||
| 14 | 309632906 | No.base-stud Assy (ncs1403-g96y) |
|
- | |||||
| 19 | 5303002664 | Washer |
|
- | |||||
| F1 | 5304408299 | Compr-bristol H29b28uabcx |
|
- | |||||
| F11 | 309634201 | No.evap-assy Hdtc 3row/17fpi |
|
- | |||||
| F12 | 5303306719 | Condenser |
|
$ 574.61 | |||||
| F16 | 3018221 | Tube-capillary (cut To 35``) |
|
- |
