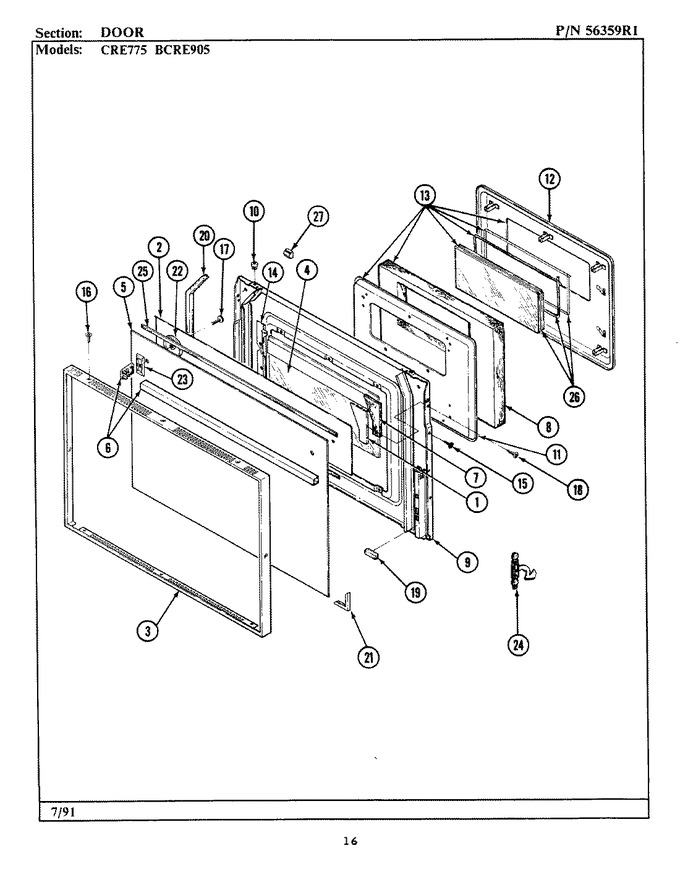

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Drawer
05 - Internal Controls
06 - Oven
07 - Top Assembly (bcre905)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F158-70 | Baffle,corner (right) | 00 |
|
- | ||||
| 1 | 3601F159-70 | Baffle, Corner (left) | 00 |
|
- | ||||
| 2 | 3601F170-45 | Baffle, Door Handle | 00 |
|
- | ||||
| 3 | 7706P246-60 | Frame, Door | 00 |
|
- | ||||
| 4 | 7902P097-60 | Glass, Inner | 00 |
|
$ 63.87 | ||||
| 5 | 7902P271-60 | Glass, Outer | 00 |
|
- | ||||
| 6 | 7701P045-60 | Handle, Door | 00 |
|
- | ||||
| 7 | 7002P106-60 | Insulation Door | 00 |
|
- | ||||
| 8 | 7002P117-60 | Insulation, Door Pad | 00 |
|
- | ||||
| 9 | 8114P274-60 | Label (cleaning Inst.) | - |
|
- | ||||
| 9 | 2402W173-15 | Lining | 04 |
|
- | ||||
| 9 | 2402W128-15 | Lining | 00 |
|
- | ||||
| 9 | 2402W173-19 | Lining | 13 |
|
- | ||||
| 10 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 00 |
|
$ 9.89 | ||||
| 11 | 2410F016-51 | Pad, Inner | 00 |
|
- | ||||
| 12 | 2410W029-15 | Pad, Door | 00 |
|
- | ||||
| 12 | 2410W041-19 | Pad, Door | 13 |
|
- | ||||
| 13 | 2410A029-15 | Pad, Assy. | 00 |
|
- | ||||
| 13 | 2410A041-19 | Pad, Assy. | 13 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 14 | 3804F051-80 | Retainer, Glass | 00 |
|
- | ||||
| 15 | 7107P017-60 | Rivet | 00 |
|
- | ||||
| 16 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 00 |
|
Immediately | $ 6.85 | |||
| 17 | WP3400074 | Screw (Replaces: 7101P068-60) | 00 |
|
$ 6.47 | ||||
| 18 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 00 |
|
Immediately | $ 6.85 | |||
| 19 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 00 |
|
$ 11.95 | ||||
| 20 | 7208P002-60 | Seal | 00 |
|
- | ||||
| 21 | 8010P045-60 | Spacer, Glass Corner | 00 |
|
- | ||||
| 22 | 8010P051-60 | Spacer, Baffle | 00 |
|
- | ||||
| 23 | 8010P052-60 | Spacer, Door Handle | 00 |
|
- | ||||
| 24 | 3420A033-34 | Stop, Oven Door | 00 |
|
- | ||||
| 25 | 8270P051-60 | Tape, 2`` X 16`` Reflective | 00 |
|
- | ||||
| 25 | 8270P034-60 | Tape, Foam | 00 |
|
- | ||||
| 26 | 5700A091-60 | Window Pak Assy. | 00 |
|
- | ||||
| 26 | 7902S303-60 | Window Pak | 10 |
|
- | ||||
| 27 | 8003P002-60 | Bumper Door (round) | 00 |
|
- | ||||
| 27 | 8003P009-60 | Bumper, Door (square) | 02 |
|
- |
