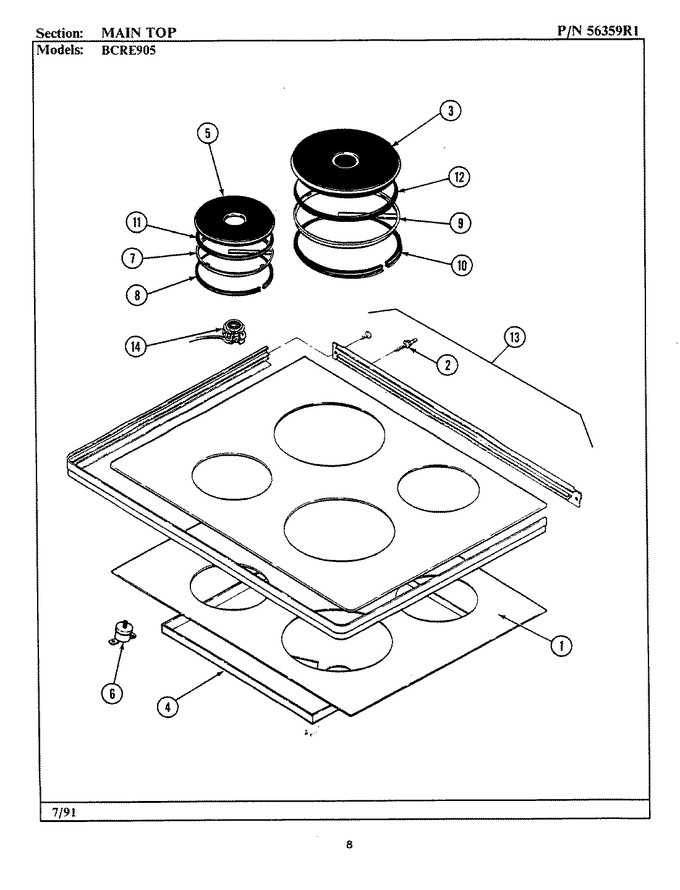

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F118-51 | Baffle, Glass Top | 00 |
|
- | ||||
| 2 | 7105P005-60 | Spacer, Main Top | 00 |
|
- | ||||
| 3 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 00 |
|
$ 244.76 | ||||
| 3 | 7406P024-60 | Element, Solid Disc (8``) | 00 |
|
- | ||||
| 4 | 3601W166-51 | Baffle, Heat Assy. | 00 |
|
- | ||||
| 5 | 7406P022-60 | Element (8``- Auto Switch) | 00 |
|
- | ||||
| 5 | 7406P019-60 | Element (6``- Auto Switch) | 00 |
|
- | ||||
| 6 | 7403P174-60 | Switch, Hi-limit | 00 |
|
- | ||||
| 7 | Y7201P02160 | Gasket, Ring (6``) | 00 |
|
- | ||||
| 8 | 7212P011-60 | Silicone Seal (6``) | 00 |
|
- | ||||
| 9 | Y7201P02260 | Gasket, Ring (8``) | 00 |
|
- | ||||
| 10 | 7212P010-60 | Silicone Seal (8``) | 00 |
|
- | ||||
| 11 | 3608F001-90 | Trim, Ring (6``) (blk) | 00 |
|
- | ||||
| 12 | 3608F002-90 | Trim, Ring (8``) (blk) | 00 |
|
- | ||||
| 13 | 5425A006-60 | Top Assy. | 00 |
|
- | ||||
| 14 | 7403P101-60 | Switch, Automatic | 00 |
|
- |
