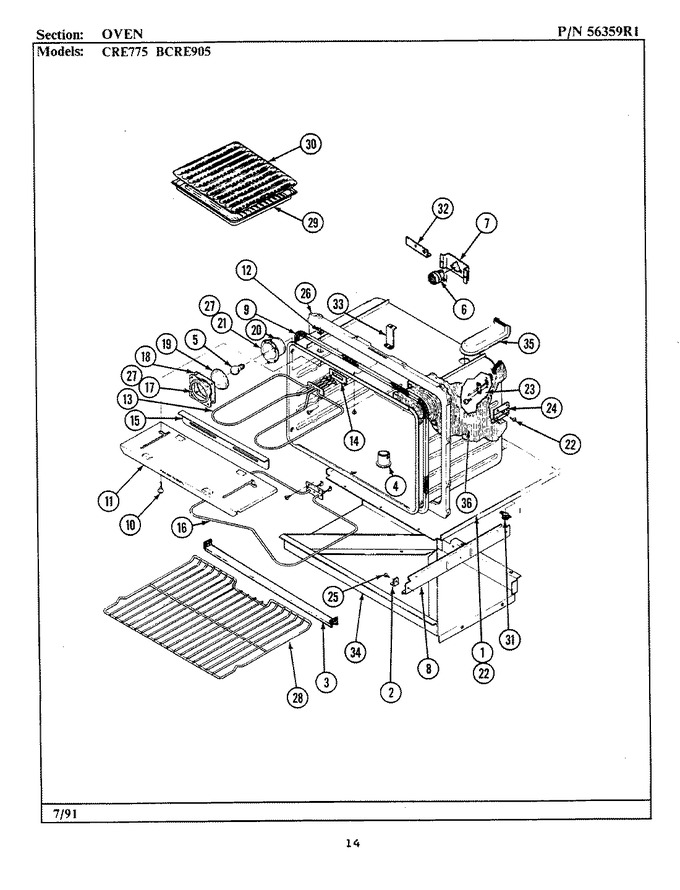

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3804F102-80 | Retainer, Bottom Insulation | 00 |
|
- | ||||
| 2 | 8016P005-60 | Glide, Front | 00 |
|
- | ||||
| 3 | 3802F076-51 | Brace, Inner Side | 00 |
|
- | ||||
| 4 | 8026A011-60 | Tube, Vent | 00 |
|
- | ||||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 00 |
|
Immediately | $ 1.98 | |||
| 6 | 7408P002-60 | Receptacle, Lamp | 00 |
|
- | ||||
| 7 | 3801F024-51 | Bracket | 00 |
|
- | ||||
| 8 | 3406F027-51 | Runner, Outer | 05 |
|
- | ||||
| 8 | 3406F025-51 | Runner,outer | 00 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 9 | 7201P036-60 | Gasket, Oven | 00 |
|
$ 118.90 | ||||
| 10 | 7118P001-60 | Screw, Broil Shield | 00 |
|
- | ||||
| 11 | 3604F092-45 | Shield, Broil | 00 |
|
- | ||||
| 12 | WP488130 | Nut, Keps Black (Replaces: 7103P062-60) | 00 |
|
$ 6.27 | ||||
| 13 | 7406P068-60 | Element, Broil | 11 |
|
- | ||||
| 13 | 7406P032-60 | Element, Broil | 00 |
|
- | ||||
| 14 | 7201P003-60 | Gasket, Element | 00 |
|
- | ||||
| 15 | 3807F176-15 | Support, Broil Element | 00 |
|
- | ||||
| 16 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 00 |
|
$ 133.20 | ||||
| 16 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 11 |
|
$ 133.20 | ||||
| 17 | 3804F012-45 | Retainer, Lamp Guard | 00 |
|
- | ||||
| 18 | 7201P015-60 | Gasket, Lamp Retainer | 00 |
|
- | ||||
| 19 | 7902P057-60 | Glass, Lamp Guard | 00 |
|
- | ||||
| 20 | 4001F020-23 | Housing, Lamp | 00 |
|
- | ||||
| 21 | 7201P014-60 | Gasket, Housing | 00 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 23 | 12001656 | Probe, Oven Sensor (Replaces: 12500029) | 17 |
|
Immediately | $ 39.55 | |||
| 23 | 12001656 | Probe, Oven Sensor (Replaces: W10127323) | 00 |
|
Immediately | $ 39.55 | |||
| 24 | 3807F205-45 | Support, Oven Rear | 00 |
|
- | ||||
| 25 | 7101P013-60 | Screw, Special | 00 |
|
- | ||||
| 26 | 2201F061-23 | Front, Oven Upper | 00 |
|
- | ||||
| 27 | 7101P287-60 | Screw, Metal Grounding | 00 |
|
$ 12.03 | ||||
| 28 | 7801P032-60 | Rack | 00 |
|
- | ||||
| 29 | 4396923 | Pan, Broil (Replaces: 3401F004-15) | 00 |
|
Immediately | $ 52.04 | |||
| 29 | Y3401F02019 | Pan, Broil | 18 |
|
- | ||||
| 30 | Y3413F01619 | Insert, Broil Pan | 18 |
|
- | ||||
| 30 | 4396923 | Insert, Pan (Replaces: 3413F002-15) | 00 |
|
Immediately | $ 52.04 | |||
| 31 | 7403P164-60 | Switch, Hi-limit | 00 |
|
- | ||||
| 32 | 3604F007-80 | Shield, Light Receptacle | 00 |
|
- | ||||
| 33 | 3801F093-45 | Bracket, Burner Box | 00 |
|
- | ||||
| 34 | 3601W120-80 | Baffle Assy., Air Duct | 00 |
|
- | ||||
| 35 | 4006W056-45 | Box Assy, Vent | 00 |
|
- | ||||
| 36 | 7002P046-60 | Insulation, Wrapper | 00 |
|
- |
