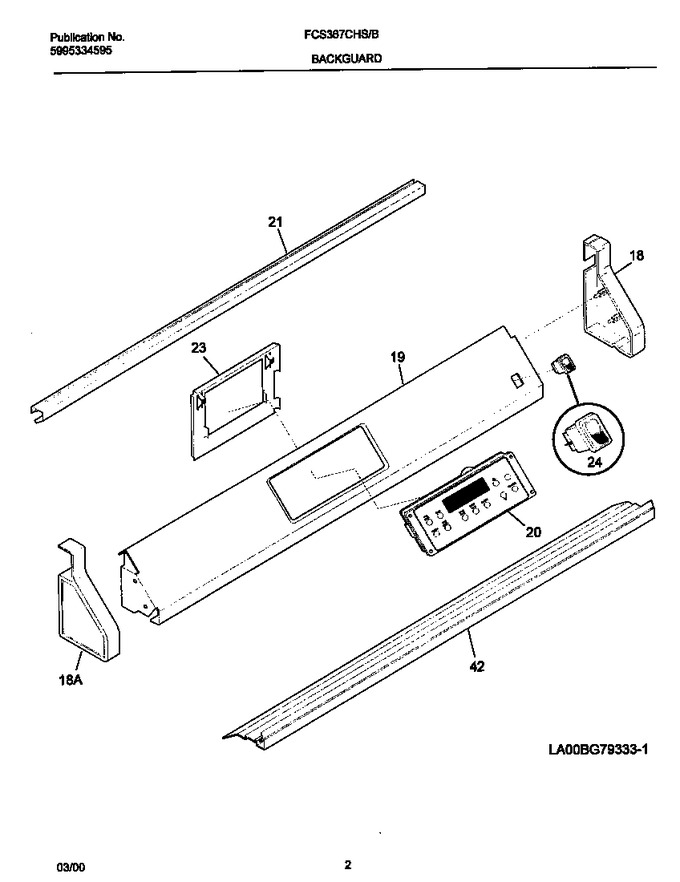

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303304668		End Cap, White, Rh		Appelez-nous	-
18	5303304671		End Cap, White, Lh		Appelez-nous	-
19	318005582		Panel-control,white		Appelez-nous	-
20	318012915		Clock/timer, Eoc, White		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015020		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
*67400	3201861		Screw, 6 X 3/8				$ 0.76
*67401	08002868		Screw 10 X 24 X 1/2				$ 14.18
*67402	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*67403	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*67404	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*67405	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*67406	5303323145		Nut		Appelez-nous	-
