SELECT A DIAGRAM

01 - Cover


02 - Backguard

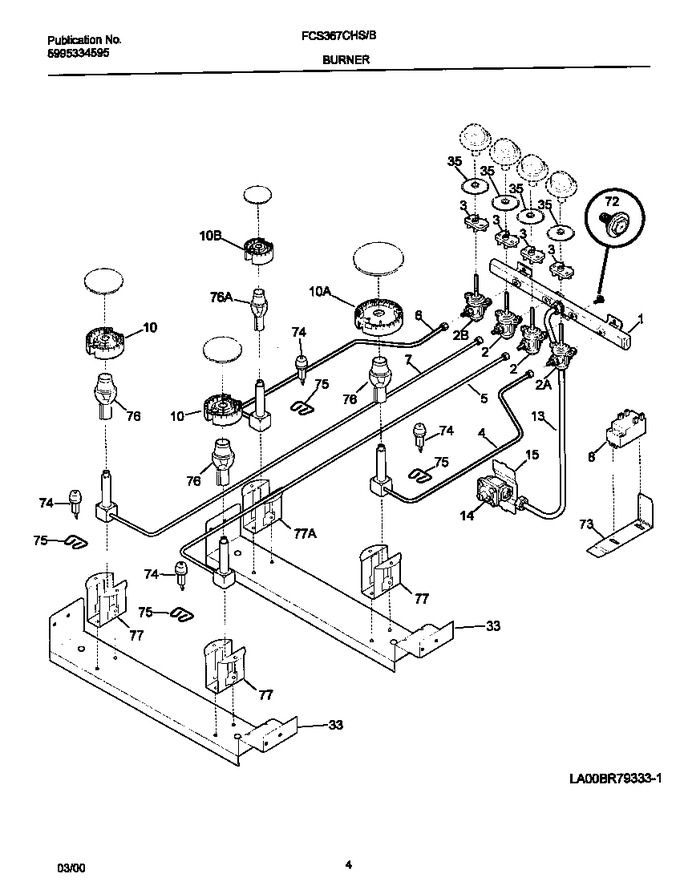

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Back-main		Appelez-nous	-
1	318070901		Back-main, Upper		Appelez-nous	-
2	318108600		Shield,oven Top		Appelez-nous	-
3	318160004		Panel-lower Side Rh				$ 167.69
3	318160005		Panel-lower Side Lh		Appelez-nous	-
3	5303300143		Panel-upper Side		Appelez-nous	-
4	318073900		Panel-subtop		Appelez-nous	-
5	318175510		Screw-levelling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack-oven   (Replaces: 5303310522)			Immediately	$ 148.70
9	318138800		Pan-broiler		Appelez-nous	-
10	318126400		Insert-broiler Pan		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer Lenz		Appelez-nous	-
37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
54	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
56	318002602		Trim-oven Front,white		Appelez-nous	-
58	5303310538		Insulation Oven Back		Appelez-nous	-
58	5303310539		Insulation Wrapper		Appelez-nous	-
59	318072520		Tube-oven Vent		Appelez-nous	-
59	318072519		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
63	5303310517		Plate,ground Strap		Appelez-nous	-
66	318255605		Element-broil   (Replaces: 5303310513)			Immediately	$ 192.78
67	318255006		Element-bake   (Replaces: 5303310512)			Immediately	$ 185.14
68	5304403015		Support-element				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
71	5303310515		Cover-wiring				$ 368.97
76	318124100		Front-oven		Appelez-nous	-
80	5303324473		Bracket-oven		Appelez-nous	-
81	5303301261		Spring,oven		Appelez-nous	-
83	318089608		Liner-oven,comp.		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
87	318111803		Plate,mounting		Appelez-nous	-
88	5303311160		Rod-latch		Appelez-nous	-
102	5303311142		Support-oven Front		Appelez-nous	-
108	318073001		Motor-fan		Appelez-nous	-
114	318175100		Plate-filler		Appelez-nous	-
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
141	5303284446		Switch, Thermal Cutout		Appelez-nous	-
142	318123901		Deflector		Appelez-nous	-
177	5303324040		Gasket-vent		Appelez-nous	-
191	5303304030		Bracket Corner		Appelez-nous	-
217	316042300		Plate,warning		Appelez-nous	-
223	318038400		Cover-tube		Appelez-nous	-
264	318077601		Cover-wire		Appelez-nous	-
*67407	3201861		Screw, 6 X 3/8				$ 0.76
*67408	08002868		Screw 10 X 24 X 1/2				$ 14.18
*67409	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*67410	5303051099		Nut, Hex, 10-32		Appelez-nous	-
*67411	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*67412	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*67413	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*67414	316205500		Nut, Hex, 10-32   (Replaces: 5303308427)				$ 11.34
*67415	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*67416	5303323129		Screw,8 X 3/4		Appelez-nous	-
*67417	318096002		Motor-latch		Appelez-nous	-
170A	318175700		Bracket,anti-tip ,rh		Appelez-nous	-
170B	318175701		Bracket,anti-tip ,lh		Appelez-nous	-
89A	318095956		Motor-latch Assy   (Replaces: 318095921)			Immediately	$ 143.83
89B	318120710		Switch-door,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
