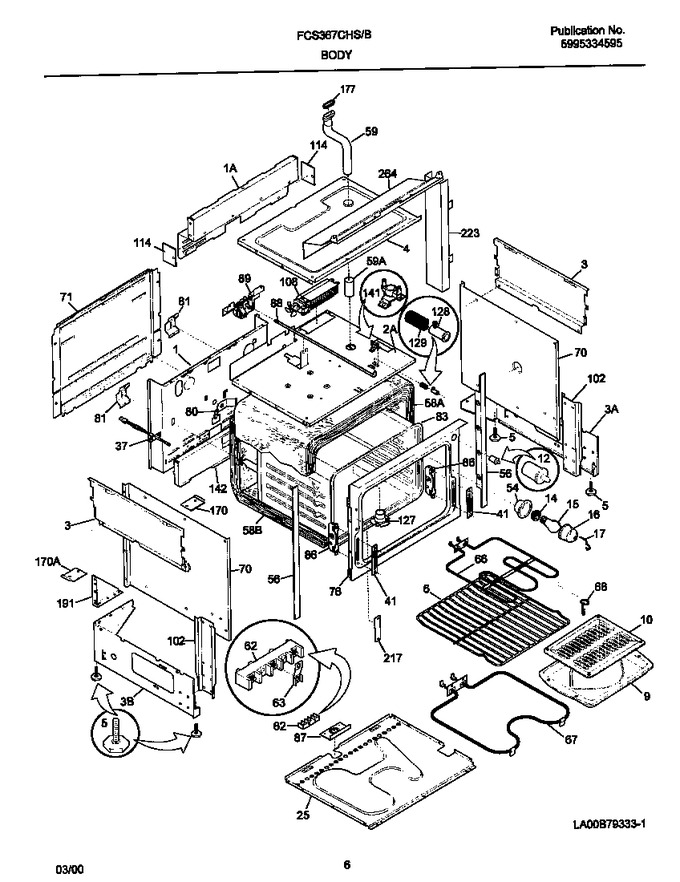

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer,white		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
16	318079200		Main Top, Glass, White		Appelez-nous	-
17	5304400195		Retainer Lenz		Appelez-nous	-
19	318168106		Burner Pan Small White,small Rr				$ 77.29
19	318168116		Burner Pan Medium White,mid Lr & Fl				$ 97.65
19	318168126		Burner Pan Large White,large Rf				$ 93.40
20	318120106		Grate,(4)		Appelez-nous	-
22	318076411		Cap-burner,white ,mid Lf & Lr		Appelez-nous	-
22	318076421		Cap-burner,white ,large Rf				$ 147.70
22	318076401		Cap-burner,white ,small Rr		Appelez-nous	-
31	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
36	318164720		Knob,temp Control		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*67418	3201899		Washer,hinge Assy		Appelez-nous	-
*67419	08002868		Screw 10 X 24 X 1/2				$ 14.18
*67420	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*67421	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*67422	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*67423	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*67424	5303300414		Spacer, Cork & Rubber				$ 13.18
*67425	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*67426	5303325171		Washer,plastic		Appelez-nous	-
*67427	5303325174		Screw		Appelez-nous	-
*67428	5304403558		Screw,10-16 X 0.250		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
