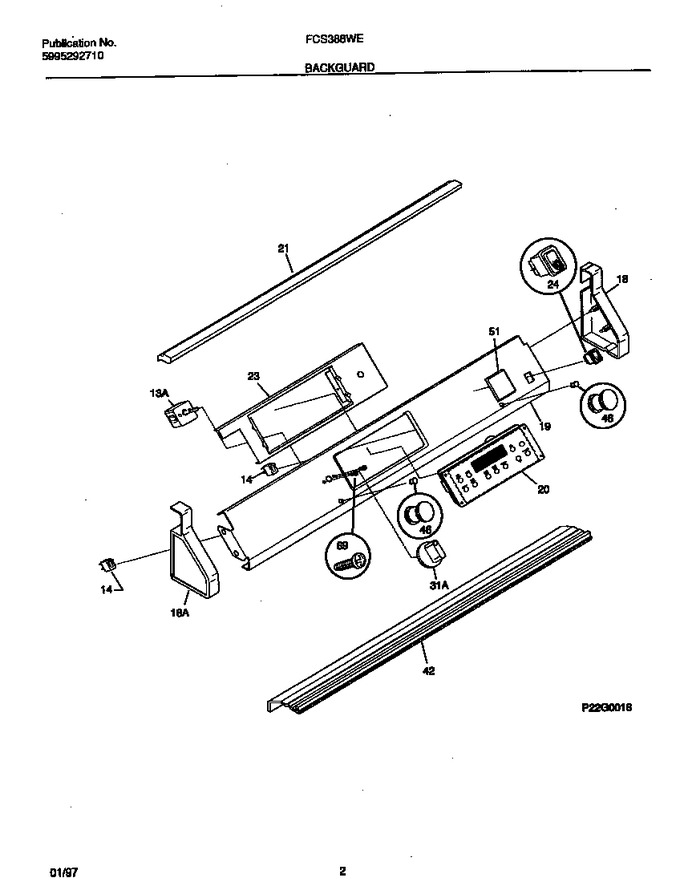

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318005543		Panel-control		Appelez-nous	-
20	318012903		Clock/timer,electronic		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015502		Bracket-clock Mtg		Appelez-nous	-
24	316083101		Switch-rocker, Rh				$ 85.01
24	5303304692		Plate, Backup, Light Switch (not Illustrated)		Appelez-nous	-
31	318017600		Knob-warmer				$ 30.14
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
69	5303323137		Screw, Switch Mtg, (2)   (Replaces: 5303305528)				$ 11.88
*57240	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*57241	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*57242	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
