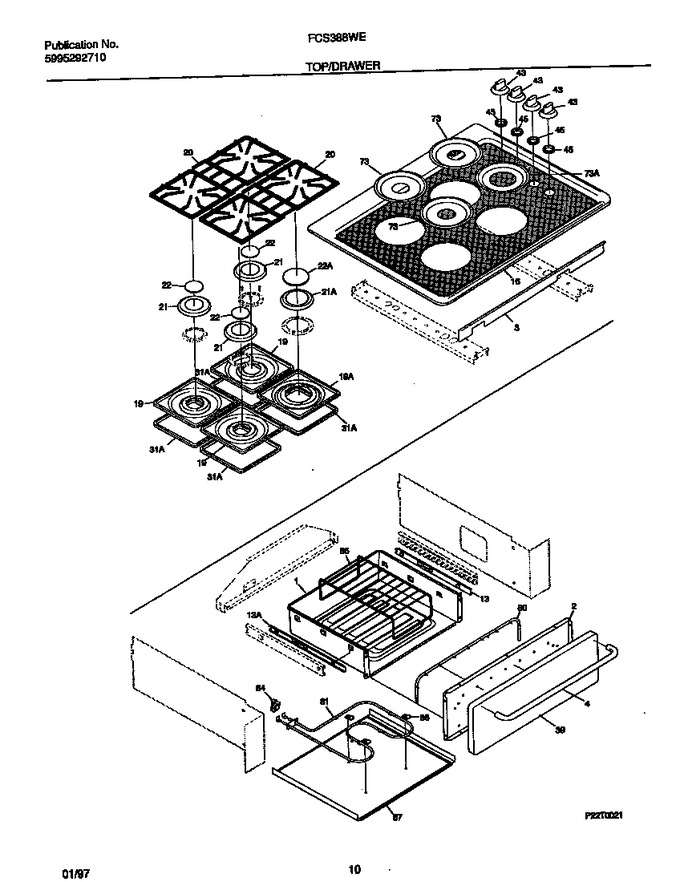

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108011		Liner, Drawer		Appelez-nous	-
3	318090700		Bracket-maintop		Appelez-nous	-
4	318107900		Panel-drawer, Stainless		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
16	318079203		Main Top, Stainless		Appelez-nous	-
19	5303307930		Pan-burner, Black, (3), Small		Appelez-nous	-
19	5303311265		Pan-burner, Black, Large		Appelez-nous	-
20	318120400		Grate, (2)		Appelez-nous	-
21	5303209009		Trim Ring, Small, Black, (3)		Appelez-nous	-
21	5303311292		Trim Ring-large, Black		Appelez-nous	-
22	316011001		Cap-burner, Black, Small, (3)		Appelez-nous	-
22	316011008		Cap-burner, Black, Large		Appelez-nous	-
31	5303307931		Gasket, Pan		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
43	318099110		Knob-top Valve, (4)				$ 104.42
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
73	318057101		Deflector, Large		Appelez-nous	-
73	318057100		Deflector, (3), Small		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
84	318003400		Thermostat-safety				$ 237.43
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121500		Base-warmer		Appelez-nous	-
*57266	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*57267	5304453707		Screw-handle   (Replaces: 5303300155)			Immediately	$ 15.92
*57268	5303300414		Spacer, Cork & Rubber				$ 13.18
*57269	5303311125		Bracket,drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
