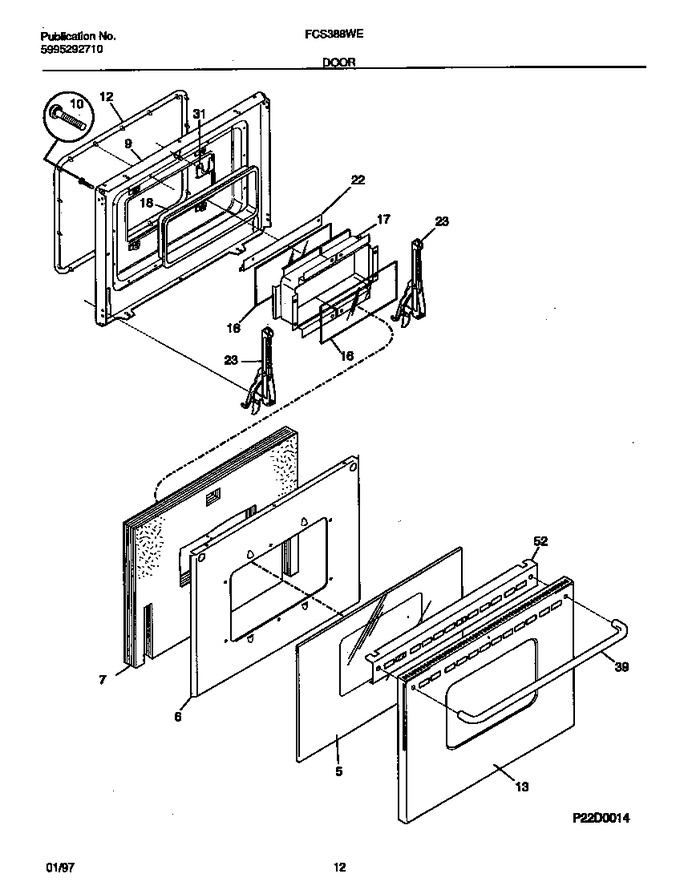

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318041104		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318056802		Shield-insulation		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048800		Liner-oven Door		Appelez-nous	-
10	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
13	318009220		Panel-oven Door,stainless ,outer		Appelez-nous	-
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316079500		Handle-door/drawer, Stainless				$ 289.70
52	318123400		Shield-oven Door, Stainless, Top		Appelez-nous	-
*57270	5303310535		Spacer-door		Appelez-nous	-
*57271	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*57272	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*57273	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*57274	5308007939		Plug, Door Liner		Appelez-nous	-
*57275	318043100		Bracket-trim, Handle, (2)				$ 52.87
